Overview

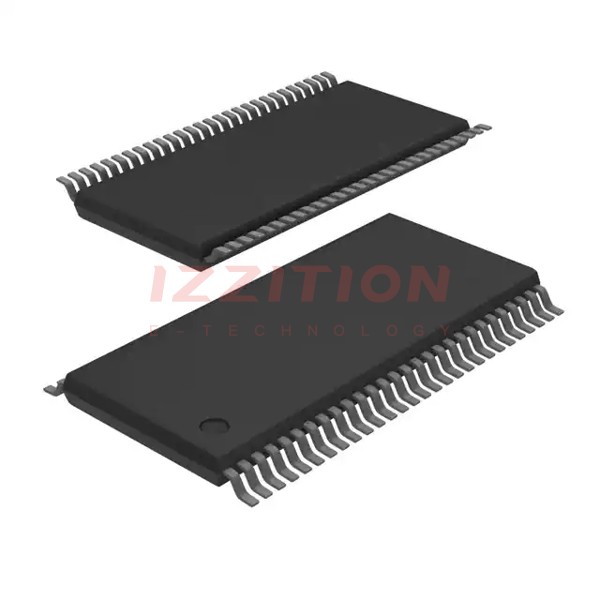

The SN74CBTD16211DGGR, manufactured by Texas Instruments, is a 5-V, 1:1 (SPST), 24-channel FET bus switch with level shifting capabilities. This component is designed to provide high-speed TTL-compatible bus switching, making it suitable for a variety of digital signal switching applications. It is packaged in a 56-pin TSSOP (DGG) package, ensuring compact and efficient integration into modern electronic systems.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage Range | 4.5 V to 5.5 V |
| Number of Channels | 24 |
| Switch Type | 1:1 (SPST) FET Bus Switch |
| Package Type | TSSOP (DGG) - 56 pins |
| On-State Resistance | Low on-state resistance |
| Compatibility | TTL-compatible |
| Operating Temperature | -40°C to 85°C |
Key Features
- High-speed TTL-compatible bus switching
- Level shifting capabilities
- Low on-state resistance
- Compact TSSOP (DGG) package with 56 pins
- Operating voltage range of 4.5 V to 5.5 V
- Wide operating temperature range of -40°C to 85°C
Applications
- Digital signal switching in high-speed data transmission systems
- Level shifting between different voltage domains
- Bus isolation and multiplexing in communication systems
- Embedded systems requiring high-speed data transfer
- Industrial control systems and automation
Q & A
- What is the primary function of the SN74CBTD16211DGGR? The primary function is to provide high-speed TTL-compatible bus switching with level shifting capabilities.
- How many channels does the SN74CBTD16211DGGR have? It has 24 channels.
- What is the package type of the SN74CBTD16211DGGR? It is packaged in a 56-pin TSSOP (DGG) package.
- What is the operating voltage range of the SN74CBTD16211DGGR? The operating voltage range is from 4.5 V to 5.5 V.
- What is the on-state resistance of the SN74CBTD16211DGGR? It has low on-state resistance.
- What are the typical applications of the SN74CBTD16211DGGR? Typical applications include digital signal switching, level shifting, bus isolation, and high-speed data transfer in various systems.
- What is the operating temperature range of the SN74CBTD16211DGGR? The operating temperature range is from -40°C to 85°C.
- Is the SN74CBTD16211DGGR compatible with TTL signals? Yes, it is TTL-compatible.
- How many pins does the TSSOP package of the SN74CBTD16211DGGR have? The TSSOP package has 56 pins.
- Where can I find detailed specifications for the SN74CBTD16211DGGR? Detailed specifications can be found on the Texas Instruments website and in the datasheet available from various electronic component suppliers.
