Overview
The SN74CBT3245CRGYR is a high-performance, 8-bit bus switch produced by Texas Instruments. It belongs to the category of digital switches and is designed to facilitate bidirectional voltage-level translation and signal switching in various electronic systems. This model is particularly suited for applications requiring low on-state resistance and minimal propagation delay. Its market positioning targets embedded systems, communication devices, and industrial automation, making it an ideal choice for engineers and designers seeking reliable signal routing solutions. The SN74CBT3245CRGYR stands out for its robust performance, compact packaging, and compatibility with a wide range of voltage levels.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Number of Channels | 8 | - | Bidirectional |
| Voltage Range | 0 to 5.5 | V | Wide operating range |
| On-State Resistance | 5 | Ω | Typical value |
| Propagation Delay | 0.25 | ns | Max value |

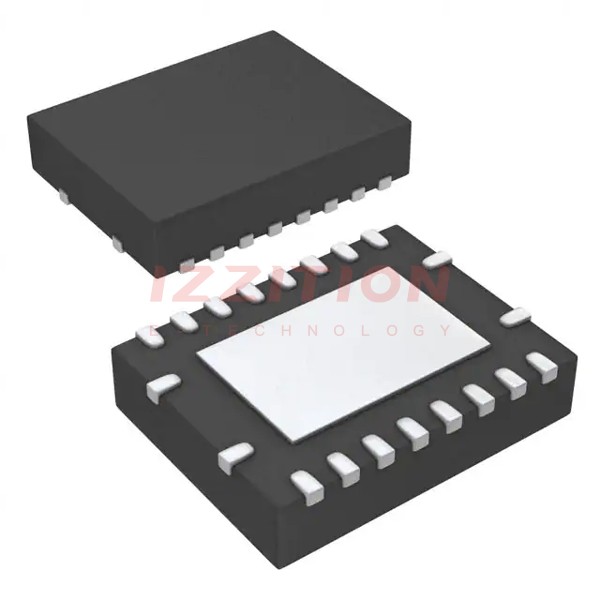

| Package Type | VQFN | - | 20-pin |
| Operating Temperature | -40 to 85 | °C | Industrial grade |
| Supply Voltage | 4.5 to 5.5 | V | Typical |
| Input/Output Capacitance | 7 | pF | Typical value |
Key Features
- Bidirectional Voltage Translation: Supports seamless switching between different voltage levels.
- Low On-State Resistance: Ensures minimal signal attenuation and power loss.
- High-Speed Operation: Features ultra-low propagation delay for fast signal routing.
- Compact Packaging: Available in a 20-pin VQFN package for space-constrained designs.
- Wide Voltage Range: Compatible with 0 to 5.5V systems, enhancing versatility.
Applications
The SN74CBT3245CRGYR is widely used in various industries due to its robust performance and flexibility. Key application areas include:
- Embedded Systems: Facilitates signal routing and voltage translation in microcontrollers and FPGAs.
- Communication Devices: Enables efficient signal switching in routers, switches, and modems.
- Industrial Automation: Supports reliable operation in PLCs and control systems.
- Consumer Electronics: Used in devices like smartphones and tablets for signal management.
- Automotive Electronics: Ensures stable performance in infotainment and control modules.
Q & A
1. What is the primary function of the SN74CBT3245CRGYR?
The primary function is bidirectional voltage-level translation and signal switching.
2. What is the operating voltage range of this device?
The operating voltage range is 0 to 5.5V.
3. What is the typical on-state resistance?
The typical on-state resistance is 5Ω.
4. What is the maximum propagation delay?
The maximum propagation delay is 0.25ns.
5. What package type does the SN74CBT3245CRGYR use?
It uses a 20-pin VQFN package.
6. Is this device suitable for industrial applications?
Yes, it operates reliably in temperatures ranging from -40°C to 85°C.
7. Can it be used in automotive electronics?
Yes, it is suitable for automotive applications such as infotainment systems.
8. What is the input/output capacitance?
The input/output capacitance is typically 7pF.
9. Does it support high-speed signal routing?
Yes, it features ultra-low propagation delay for high-speed operation.
10. Where can I find detailed technical specifications?
Detailed specifications are available on the Texas Instruments official website or distributor platforms like Digi-Key and Mouser.
