Overview

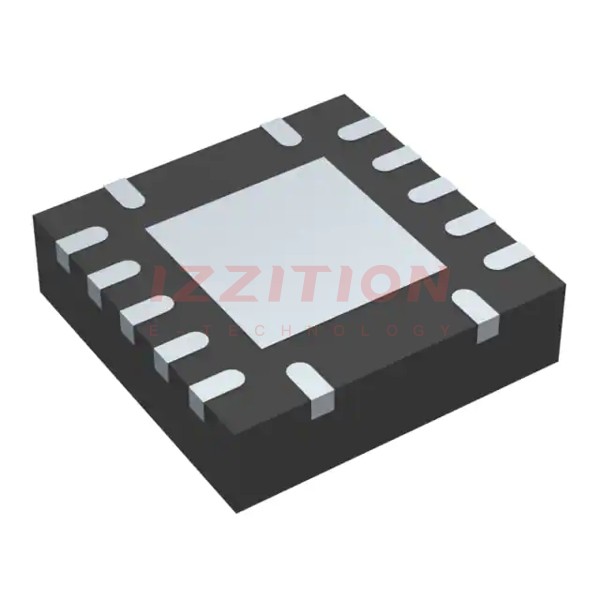

The SN74ALVC08RGYR is a quadruple 2-input positive-AND gate manufactured by Texas Instruments. This device is designed to operate within a voltage range of 1.65 V to 3.6 V, making it versatile for various digital logic applications. It is packaged in a 14-pin VQFN (RGY) package, which is compact and suitable for modern electronic designs. The SN74ALVC08RGYR performs the Boolean function Y = A · B in positive logic, making it a crucial component in digital circuits that require AND gate functionality.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Package Type | VQFN (RGY) | - |
| Pins | 14 | - |
| Operating Temperature Range | -40 to 85 | °C |
| Supply Voltage Range | 1.65 to 3.6 | V |
| Maximum Propagation Delay (tpd) at 3.3 V | 2.9 ns | ns |
| Output Drive at 3.3 V | ±24 mA | mA |
| Latch-Up Performance | Exceeds 250 mA per JESD 17 | - |
| ESD Protection | 2000-V Human-Body Model, 200-V Machine Model, 1000-V Charged-Device Model | - |
Key Features
- Operates from 1.65 V to 3.6 V, making it suitable for a wide range of voltage supplies.
- Ultra-high-speed operation with a maximum propagation delay of 2.9 ns at 3.3 V.
- High output drive capability of ±24 mA at 3.3 V.
- Excellent latch-up performance exceeding 250 mA per JESD 17.
- Robust ESD protection exceeding JESD 22 standards (2000-V Human-Body Model, 200-V Machine Model, 1000-V Charged-Device Model).
Applications
The SN74ALVC08RGYR is suitable for various digital logic applications where high-speed AND gate functionality is required. It can be used in:
- Digital signal processing circuits.
- Microprocessor and microcontroller systems.
- Communication equipment.
- Automotive and industrial control systems.
- Any application requiring low-voltage, high-speed logic gates.
Q & A
- What is the voltage range for the SN74ALVC08RGYR? The device operates from 1.65 V to 3.6 V.
- What is the maximum propagation delay at 3.3 V? The maximum propagation delay is 2.9 ns at 3.3 V.
- What is the output drive capability at 3.3 V? The output drive capability is ±24 mA at 3.3 V.
- What kind of ESD protection does the SN74ALVC08RGYR have? It exceeds JESD 22 standards with 2000-V Human-Body Model, 200-V Machine Model, and 1000-V Charged-Device Model.
- What is the operating temperature range for the SN74ALVC08RGYR? The operating temperature range is -40°C to 85°C.
- In what package is the SN74ALVC08RGYR available? It is available in a 14-pin VQFN (RGY) package.
- What Boolean function does the SN74ALVC08RGYR perform? It performs the Boolean function Y = A · B in positive logic.
- Is the SN74ALVC08RGYR RoHS compliant? Yes, it is RoHS compliant.
- What are some typical applications for the SN74ALVC08RGYR? It is used in digital signal processing, microprocessor and microcontroller systems, communication equipment, and automotive and industrial control systems.
- What is the latch-up performance of the SN74ALVC08RGYR? The latch-up performance exceeds 250 mA per JESD 17.
