Overview
The SN74AHC1G32DRLRG4 is a single 2-input positive-OR gate produced by Texas Instruments. It belongs to the AHC (Advanced High-Speed CMOS) logic family, which is designed for high-speed and low-power applications. This component is ideal for use in portable devices, industrial controls, and consumer electronics due to its compact size and efficient performance. Its unique selling points include its wide operating voltage range, high noise immunity, and low power consumption, making it a competitive choice for modern electronic designs.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Supply Voltage Range | 2 V to 5.5 V | V | Wide operating range |
| Input Voltage Range | 0 V to VCC | V | Compatible with TTL levels |
| Propagation Delay | 6.5 | ns | Typical at 5 V |
| Operating Temperature | -40 to 85 | °C | Industrial range |

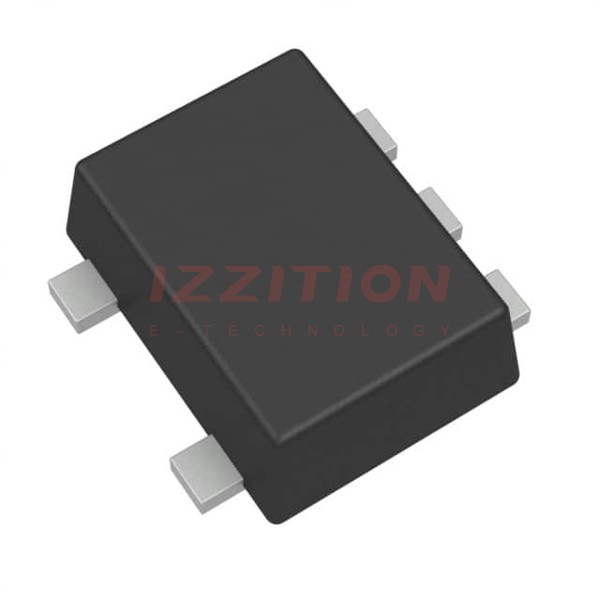

| Package Type | SOT-553 | - | Compact and space-saving |
| Logic Family | AHC | - | Advanced High-Speed CMOS |
| Number of Gates | 1 | - | Single gate |
| Output Current | ±8 | mA | High drive capability |
| Power Dissipation | Low | - | Energy-efficient |
| Mounting Type | Surface Mount | - | Suitable for PCB integration |
Key Features
- Wide Operating Voltage Range: Supports 2 V to 5.5 V, making it versatile for various applications.
- High-Speed Performance: Typical propagation delay of 6.5 ns ensures quick response times.
- Low Power Consumption: Ideal for battery-operated devices.
- Compact Package: SOT-553 package saves board space.
- High Noise Immunity: Ensures reliable operation in noisy environments.
- TTL-Compatible Inputs: Easy integration with TTL logic systems.
Applications
The SN74AHC1G32DRLRG4 is widely used in various applications, including:
- Portable Devices: Due to its low power consumption and compact size, it is ideal for smartphones, tablets, and wearables.
- Industrial Controls: Its high noise immunity and robust performance make it suitable for industrial automation and control systems.
- Consumer Electronics: Used in devices like TVs, gaming consoles, and home appliances for logic operations.
- Automotive Electronics: Its wide operating temperature range ensures reliability in automotive applications.
Q & A
1. What is the operating voltage range of the SN74AHC1G32DRLRG4?
The operating voltage range is 2 V to 5.5 V.
2. What is the typical propagation delay?
The typical propagation delay is 6.5 ns at 5 V.
3. Is this component compatible with TTL logic levels?
Yes, it is compatible with TTL logic levels.
4. What is the package type of this component?
It comes in an SOT-553 package.
5. Can it be used in automotive applications?
Yes, its wide operating temperature range makes it suitable for automotive electronics.
6. What is the maximum output current?
The maximum output current is ±8 mA.
7. Is this component suitable for battery-operated devices?
Yes, its low power consumption makes it ideal for battery-operated devices.
8. What is the logic family of this component?
It belongs to the AHC (Advanced High-Speed CMOS) logic family.
9. What is the operating temperature range?
The operating temperature range is -40°C to 85°C.
10. How many gates are included in this component?
It is a single 2-input positive-OR gate.
