Overview
The SN74AHC02RGYRG4 is a quad 2-input NOR gate integrated circuit manufactured by Texas Instruments. This product belongs to the AHC (Advanced High-Speed CMOS) logic family, offering high-speed operation while maintaining low power consumption. The SN74AHC02RGYRG4 is designed for general-purpose logic applications and is suitable for use in a wide range of electronic systems. Its compact packaging and robust performance make it ideal for applications in industrial, automotive, and consumer electronics. The device is particularly valued for its high noise immunity and ability to operate over a wide voltage range, making it a competitive choice in the logic gate market.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Logic Family | AHC | - | Advanced High-Speed CMOS |
| Number of Gates | 4 | - | Quad 2-input NOR gates |
| Supply Voltage Range | 2 to 5.5 | V | Wide operating voltage |
| Propagation Delay | 7.5 | ns | Typical at 5V |
| Operating Temperature Range | -40 to 85 | °C | Industrial grade |

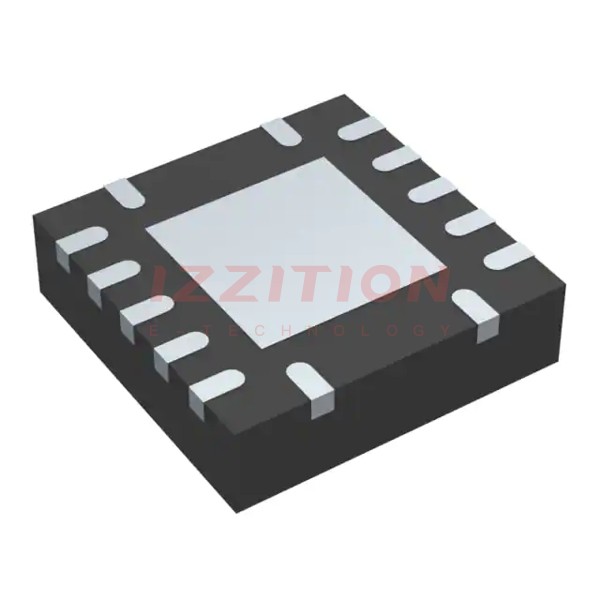

| Package | VQFN-14 | - | Compact surface-mount package |
| Input Type | CMOS | - | Compatible with TTL levels |
| Output Current | ±8 | mA | High drive capability |
| Mounting Type | Surface Mount | - | Suitable for PCB assembly |
| RoHS Compliance | Yes | - | Environmentally friendly |
Key Features
- High-speed operation with low power consumption.
- Wide operating voltage range (2V to 5.5V).
- High noise immunity for reliable performance in noisy environments.
- Compact VQFN-14 package for space-constrained applications.
- Compatible with TTL input levels, ensuring versatility in mixed-logic systems.
- Industrial temperature range for robust performance in harsh conditions.
- RoHS compliant, meeting environmental standards.
Applications
The SN74AHC02RGYRG4 is widely used in various applications, including:
- Industrial Automation: Used in control systems and signal processing due to its reliability and high noise immunity.
- Automotive Electronics: Suitable for vehicle control modules and sensor interfaces, thanks to its wide operating temperature range.
- Consumer Electronics: Ideal for logic functions in devices such as smartphones, tablets, and home appliances.
- Communication Systems: Employed in signal conditioning and data processing circuits.
- Embedded Systems: Used in microcontrollers and other digital logic applications.
Q & A
1. What is the operating voltage range of the SN74AHC02RGYRG4?
The operating voltage range is 2V to 5.5V.
2. What is the propagation delay of this device?
The typical propagation delay is 7.5 ns at 5V.
3. Is the SN74AHC02RGYRG4 compatible with TTL logic levels?
Yes, it is compatible with TTL input levels.
4. What is the package type of this IC?
It comes in a VQFN-14 package.
5. Can this device operate in industrial environments?
Yes, it has an operating temperature range of -40°C to 85°C, making it suitable for industrial applications.
6. What is the output current capability of the SN74AHC02RGYRG4?
The output current is ±8 mA.
7. Is this device RoHS compliant?
Yes, it is RoHS compliant.
8. How many NOR gates are included in this IC?
It contains four 2-input NOR gates.
9. What is the logic family of this device?
It belongs to the AHC (Advanced High-Speed CMOS) logic family.
10. What are the typical applications of this IC?
Typical applications include industrial automation, automotive electronics, consumer electronics, communication systems, and embedded systems.
