Overview

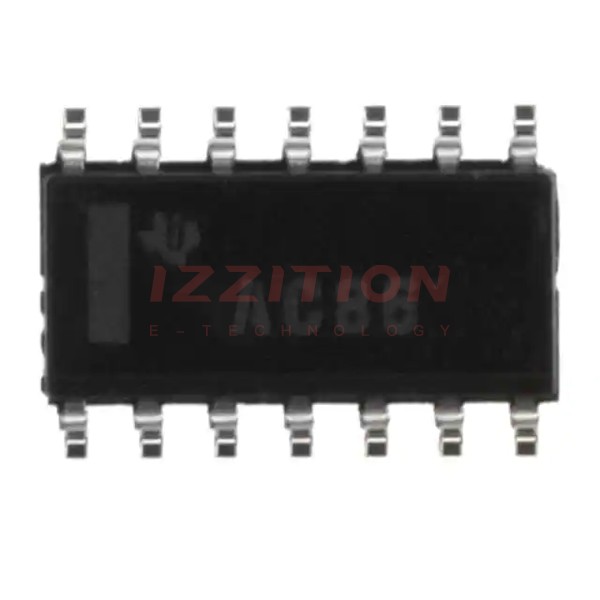

The SN74AC00DBRE4 is a high-performance quad 2-input NAND gate integrated circuit designed and manufactured by Texas Instruments. This versatile IC is part of the 74AC series, known for its high-speed operation and compatibility with TTL (Transistor-Transistor Logic) levels. It operates over a broad range of environmental conditions, offering excellent performance in terms of speed and power consumption. Built using advanced CMOS technology, the SN74AC00DBRE4 provides high noise immunity and low static power consumption. The device is available in a compact 14-pin TSSOP package, making it suitable for space-constrained designs. Its operating voltage range from 2.0V to 5.5V makes it ideal for both battery-operated and conventional electronic systems.
Key Specifications
| Parameter | Value |
|---|---|
| Part Number | SN74AC00DBRE4 |
| Manufacturer | Texas Instruments |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 per gate |
| Supply Voltage Range | 2.0V to 5.5V |
| Operating Temperature Range | -40°C to +125°C |
| Propagation Delay @ 5V, 50pF | 8 ns |
| Quiescent Current (Max) | 2 µA |
| Output Drive (IOL/IOH) (Max) | 24 mA / -24 mA |
| Package Type | 14-SSOP (0.209", 5.30mm Width) |
| Mounting Type | Surface Mount |
| RoHS Status | Lead free / RoHS Compliant |
Key Features
- High-speed operation with a typical propagation delay of 5 ns at 5V
- Low power consumption with a quiescent current of less than 2 µA
- Wide input voltage levels recognizing inputs from 0.3 VCC to 0.7 VCC
- Compatible with TTL logic levels
- High noise immunity due to advanced CMOS technology
- Compact 14-pin TSSOP package suitable for space-constrained designs
Applications
- Digital logic systems
- Data processing and communication circuits
- Signal conditioning and conversion
- Consumer electronics and appliances
- Automotive control systems
- Industrial automated controls
- Wireless communication devices
