Overview
The SN65LVDS84AQDGGR is a FlatLink™ low-voltage differential signal (LVDS) transmitter produced by Texas Instruments. This component is designed for high-speed data transmission and is particularly suited for applications requiring low power consumption and minimal external components. The device integrates three 7-bit parallel-load serial-out shift registers and four LVDS line drivers, enabling the transmission of 21 bits of single-ended LVTTL data over three balanced-pair conductors. It operates from a single 3.3-V supply and is characterized by its ultralow power consumption, making it an efficient choice for various high-speed data transmission needs.
Key Specifications
| Parameter | Value |
|---|---|

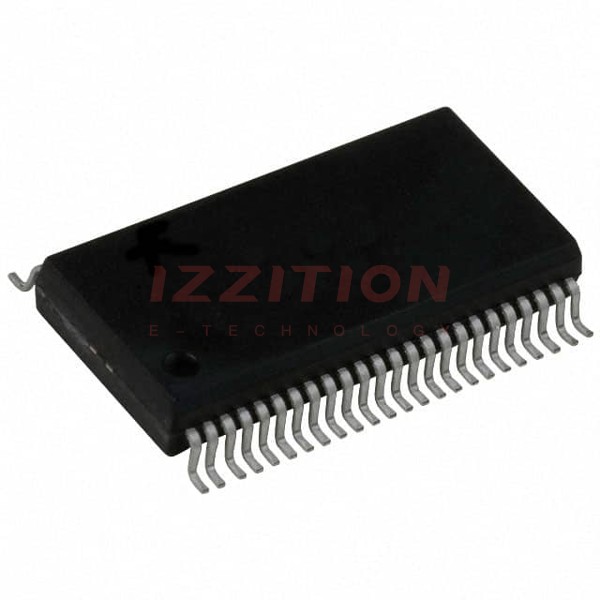

| Package | TSSOP (DGG) - 48 pins |
| Operating Temperature Range (°C) | -40 to 125 |
| Supply Voltage | 3V ~ 3.6V |
| Power Consumption | 89 mW (Typ) |
| Phase-Lock Input Frequency Range | 31 MHz to 75 MHz |
| Protocol | LVDS |
| Number of Drivers | 4/0 |
| Mounting Type | Surface Mount |
Key Features
- 21:3 Data Channel Compression at up to 196 Million Bytes per Second Throughput
- Suited for SVGA, XGA, or SXGA Data Transmission From Controller to Display With Very Low EMI
- 21 Data Channels Plus Clock In Low-Voltage TTL Inputs and 3 Data Channels Plus Clock Out Low-Voltage Differential Signaling (LVDS) Outputs
- Operates From a Single 3.3-V Supply and 89 mW (Typ)
- Ultralow-Power 3.3-V CMOS Version of the SN75LVDS84, with Power Consumption About One Third of the 'LVDS84
- Packaged in Thin Shrink Small-Outline Package (TSSOP) With 20 Mil Terminal Pitch
- Consumes Less Than 0.54 mW When Disabled
- No External Components Required for PLL
- SSC Tracking Capability of 3% Center Spread at 50-kHz Modulation Frequency
- Improved Replacement for SN75LVDS84 and NSC's DS90CF363A 3-V Device
- Available in Q-Temp Automotive for High Reliability Automotive Applications
Applications
The SN65LVDS84AQDGGR is ideal for high-speed data transmission applications, particularly in the automotive sector due to its wide operating temperature range and low power consumption. It is suitable for:
- SVGA, XGA, or SXGA data transmission from controller to display
- Automotive systems requiring reliable and low-power LVDS interfaces
- Any application needing high-speed data transmission with minimal EMI
Q & A
- Q: What is the operating temperature range of the SN65LVDS84AQDGGR?
A: The operating temperature range is -40°C to 125°C, making it suitable for automotive applications.
- Q: What is the power consumption of the SN65LVDS84AQDGGR?
A: The typical power consumption is 89 mW, and it consumes less than 0.54 mW when disabled.
- Q: Does the SN65LVDS84AQDGGR require external components for PLL operation?
A: No, the SN65LVDS84AQDGGR does not require external components for PLL operation.
- Q: What is the data transmission throughput of the SN65LVDS84AQDGGR?
A: The SN65LVDS84AQDGGR supports 21:3 data channel compression at up to 196 million bytes per second throughput.
- Q: What type of package does the SN65LVDS84AQDGGR come in?
A: The SN65LVDS84AQDGGR is packaged in a Thin Shrink Small-Outline Package (TSSOP) with 48 pins.
- Q: Is the SN65LVDS84AQDGGR suitable for automotive applications?
A: Yes, it is available in Q-Temp Automotive and is characterized for operation over the full Automotive temperature range of -40°C to 125°C.
- Q: How does the shutdown/clear input affect the SN65LVDS84AQDGGR?
A: The shutdown/clear (SHTDN) active-low input inhibits the clock and shuts off the LVDS output drivers for lower power consumption and clears all internal registers to a low level.
- Q: What is the phase-lock input frequency range of the SN65LVDS84AQDGGR?
A: The phase-lock input frequency range is 31 MHz to 75 MHz.
- Q: Does the SN65LVDS84AQDGGR meet any specific standards for LVDS outputs?
A: Yes, the outputs meet or exceed the requirements of the ANSI EIA/TIA-644 standard.
- Q: What is the SSC tracking capability of the SN65LVDS84AQDGGR?
A: The SN65LVDS84AQDGGR has an SSC tracking capability of 3% center spread at 50-kHz modulation frequency.
- Q: Where can I find detailed information about the SN65LVDS84AQDGGR, such as application notes and datasheets?
A: Detailed information, including datasheets and application notes, can be found on the Texas Instruments website or through authorized distributors like Ovaga and LCSC.
