Overview

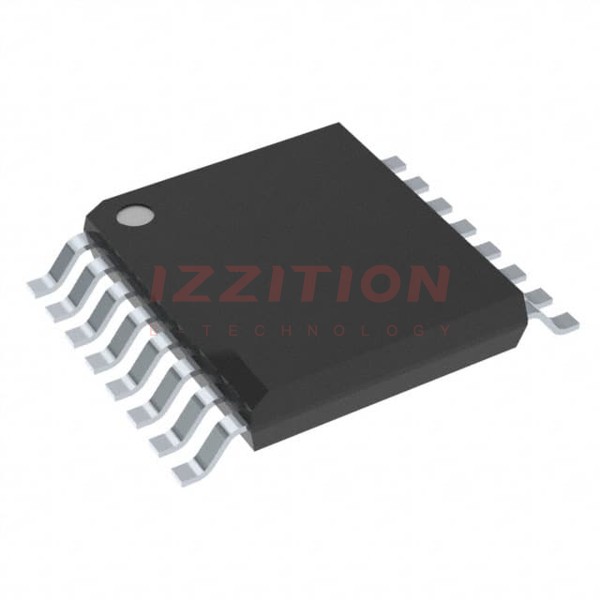

The Texas Instruments SN65C3232EDBG4 is a high-performance 2/2 transceiver IC designed for full-duplex RS232 communication. This device offers a reliable and efficient way to transmit data between devices, making it an ideal component for various applications. Despite being an obsolete product, the SN65C3232EDBG4 remains a reliable option for many systems due to its robust specifications and wide operating range.
Key Specifications
| Specification | Value |
|---|---|
| Number of Drivers/Receivers | 2/2 |
| Data Rate | Up to 1 Mbps |
| Supply Voltage Range | 3V to 5.5V |
| Operating Temperature Range | -40°C to 85°C |
| Package Type | 16-pin SSOP |
| Mounting Type | Surface Mount |
| Receiver Hysteresis | 300 mV |
| Protocol | RS232 |
| ESD Protection | +/-15 kV IEC |
Key Features
- 2 drivers and 2 receivers for full-duplex communication
- Supports data rates up to 1 Mbps
- Supply voltage range of 3V to 5.5V
- Operating temperature range of -40°C to 85°C
- Surface-mountable
- Compact 16-pin SSOP package
Applications
- Industrial control systems
- Medical devices
- Automotive electronics
- Aerospace applications
- Telecommunications equipment
Q & A
- What is the primary function of the SN65C3232EDBG4? The SN65C3232EDBG4 is a high-performance 2/2 transceiver IC designed for full-duplex RS232 communication.
- What is the data rate supported by the SN65C3232EDBG4? The SN65C3232EDBG4 supports data rates up to 1 Mbps.
- What is the supply voltage range of the SN65C3232EDBG4? The supply voltage range is 3V to 5.5V.
- What is the operating temperature range of the SN65C3232EDBG4? The operating temperature range is -40°C to 85°C.
- What type of package does the SN65C3232EDBG4 come in? The SN65C3232EDBG4 comes in a 16-pin SSOP package.
- Is the SN65C3232EDBG4 surface-mountable? Yes, the SN65C3232EDBG4 is surface-mountable.
- What protocol does the SN65C3232EDBG4 support? The SN65C3232EDBG4 supports the RS232 protocol.
- What is the receiver hysteresis of the SN65C3232EDBG4? The receiver hysteresis is 300 mV.
- Does the SN65C3232EDBG4 have ESD protection? Yes, the SN65C3232EDBG4 has +/-15 kV IEC ESD protection.
- What are some common applications of the SN65C3232EDBG4? Common applications include industrial control systems, medical devices, automotive electronics, aerospace applications, and telecommunications equipment.
