Overview
The PGA2500IDBRG4 is a digitally controlled microphone preamplifier produced by Texas Instruments. It is part of the PGA2500 series and is designed to provide high-quality audio amplification with precise gain control. This component is particularly useful in applications requiring adjustable gain settings and low noise performance.
Key Specifications
| Parameter | Value |
|---|---|
| Gain Range | 0dB, and 10dB to 65dB in 1dB steps |
| Number of Channels | 1 (Mono) |
| Amplifier Type | Class-AB |

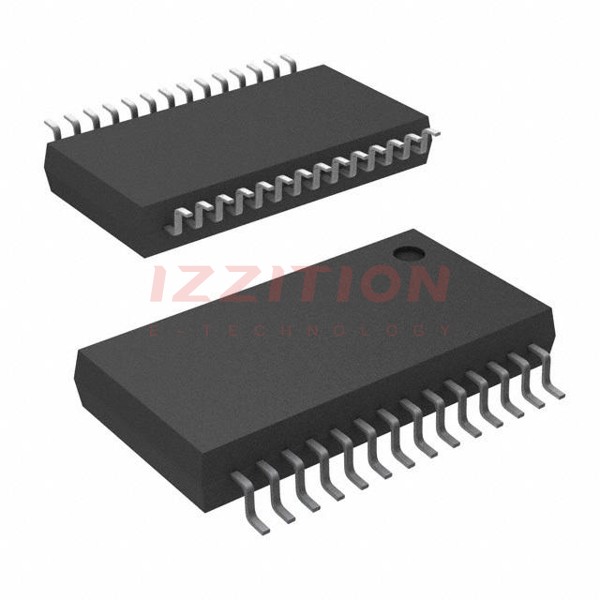

| Package Type | 28-Pin SSOP |
| RoHS Compliance | Yes |
Key Features
- Digitally controlled gain adjustment allowing for precise settings in 1dB steps.
- Wide gain range from 0dB to 65dB.
- Low noise performance, making it suitable for high-quality audio applications.
- Class-AB amplifier design for efficient operation.
- Compact 28-Pin SSOP package for space-saving designs.
Applications
The PGA2500IDBRG4 is ideal for various audio-related applications, including:
- Professional audio equipment such as microphones and mixers.
- Consumer electronics like soundbars and home theaters.
- Medical devices requiring high-quality audio amplification.
- Industrial audio systems and public address systems.
Q & A
- What is the gain range of the PGA2500IDBRG4?
The gain range is from 0dB to 65dB in 1dB steps. - How many channels does the PGA2500IDBRG4 support?
The PGA2500IDBRG4 supports one mono channel. - What type of amplifier is used in the PGA2500IDBRG4?
The PGA2500IDBRG4 uses a Class-AB amplifier. - What is the package type of the PGA2500IDBRG4?
The package type is a 28-Pin SSOP. - Is the PGA2500IDBRG4 RoHS compliant?
Yes, the PGA2500IDBRG4 is RoHS compliant. - Where can I find detailed specifications for the PGA2500IDBRG4?
Detailed specifications can be found in the datasheet available on Texas Instruments' website or through distributors like Digi-Key and Heisener. - What are some common applications for the PGA2500IDBRG4?
Common applications include professional audio equipment, consumer electronics, medical devices, and industrial audio systems. - How do I adjust the gain on the PGA2500IDBRG4?
The gain can be adjusted digitally in 1dB steps. - What is the significance of the Class-AB amplifier design in the PGA2500IDBRG4?
The Class-AB design provides efficient operation while maintaining high audio quality. - Can I use the PGA2500IDBRG4 in high-noise environments?
Yes, the PGA2500IDBRG4 is designed to provide low noise performance, making it suitable for use in high-noise environments.
