OPA703PA
  • Share:

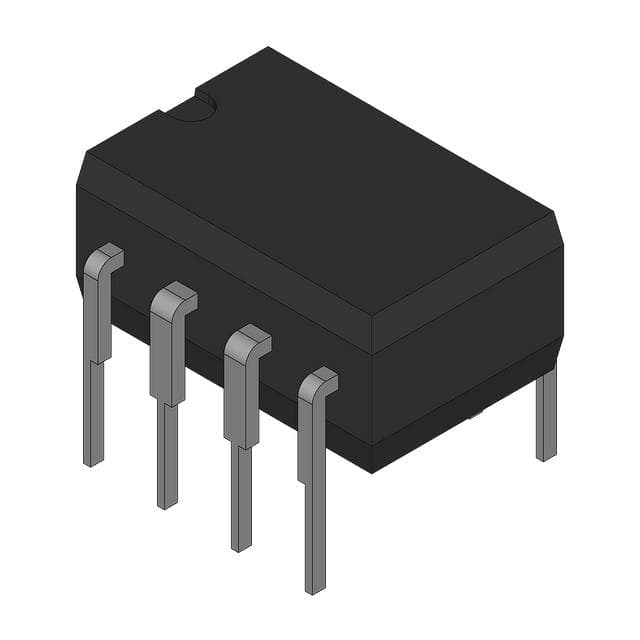

Texas Instruments OPA703PA

Manufacturer No:
OPA703PA
Manufacturer:
Texas Instruments
Package:
Bulk
Description:
IC OPAMP GP 1 CIRCUIT 8DIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The OPA703PA is a general-purpose operational amplifier (op-amp) manufactured by Texas Instruments. This device is designed for a wide range of applications, offering rail-to-rail input and output capabilities, making it suitable for both single-supply and dual-supply operations. With a bandwidth of 1 MHz, the OPA703PA is ideal for precision amplification tasks in various electronic systems. Its robust design and reliable performance make it a popular choice among engineers and designers in the electronics industry.

Key Specifications

ParameterValueUnitNotes
CategoryLinear - Amplifiers-Instrumentation, OP Amps, Buffer Amps
ManufacturerTexas Instruments--
Series---
DescriptionIC OPAMP GP R-R 1MHZ SGL-8DIP
Bandwidth1MHz-
Supply VoltageSingle/DualVRail-to-Rail

Key Features

  • Rail-to-Rail Input and Output: Ensures maximum dynamic range in both single and dual supply applications.
  • 1 MHz Bandwidth: Suitable for precision amplification tasks.
  • Robust Design: Reliable performance in various electronic systems.
  • General-Purpose: Versatile for a wide range of applications.

Applications

The OPA703PA is widely used in various fields including industrial automation, consumer electronics, and automotive electronics. Its precision amplification capabilities make it ideal for sensor signal conditioning, active filtering, and data acquisition systems. In consumer electronics, it is often used in audio amplification and signal processing. In automotive applications, it is utilized in control systems and sensor interfaces, providing reliable performance in harsh environments.

Q & A

1. What is the bandwidth of the OPA703PA?

The OPA703PA has a bandwidth of 1 MHz.

2. Can the OPA703PA operate with a single supply?

Yes, the OPA703PA is designed to operate with both single and dual supplies.

3. What is the input/output capability of the OPA703PA?

The OPA703PA features rail-to-rail input and output capabilities.

4. What are the typical applications of the OPA703PA?

Typical applications include sensor signal conditioning, active filtering, and data acquisition systems.

5. Is the OPA703PA suitable for automotive applications?

Yes, the OPA703PA is suitable for automotive applications, including control systems and sensor interfaces.

6. What is the supply voltage range for the OPA703PA?

The OPA703PA can operate with a wide range of supply voltages, suitable for both single and dual supply operations.

7. Does the OPA703PA require external components for operation?

Basic operation may require minimal external components, depending on the specific application.

8. What is the package type of the OPA703PA?

The OPA703PA is available in an 8-pin DIP package.

9. Is the OPA703PA suitable for audio applications?

Yes, the OPA703PA can be used in audio amplification and signal processing applications.

10. What makes the OPA703PA a general-purpose op-amp?

Its rail-to-rail capabilities, 1 MHz bandwidth, and robust design make it versatile for a wide range of applications.

Product Attributes

Amplifier Type:General Purpose
Number of Circuits:1
Output Type:Rail-to-Rail
Slew Rate:0.6V/µs
Gain Bandwidth Product:1 MHz
-3db Bandwidth:-
Current - Input Bias:1 pA
Voltage - Input Offset:160 µV
Current - Supply:160µA
Current - Output / Channel:10 mA
Voltage - Supply Span (Min):4 V
Voltage - Supply Span (Max):12 V
Operating Temperature:-40°C ~ 85°C
Mounting Type:Through Hole
Package / Case:8-DIP (0.300", 7.62mm)
Supplier Device Package:8-PDIP
0 Remaining View Similar

In Stock

$2.40
377

Please send RFQ , we will respond immediately.
