OPA4353EA/2K5
  • Share:

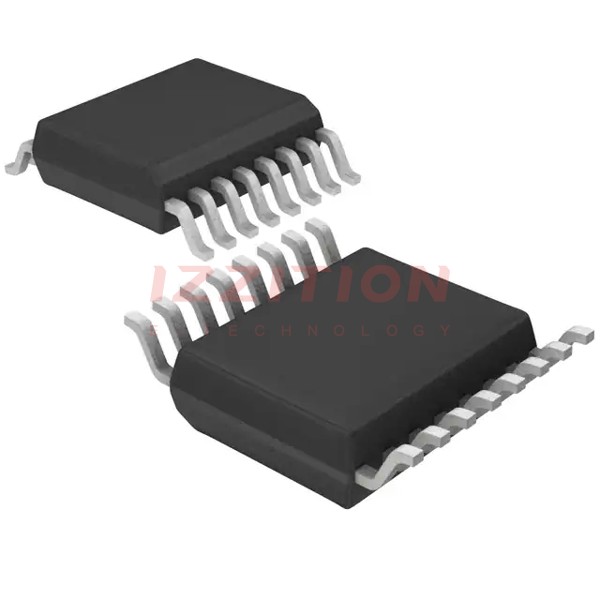

Texas Instruments OPA4353EA/2K5

Manufacturer No:
OPA4353EA/2K5
Manufacturer:
Texas Instruments
Package:
Tape & Reel (TR)
Description:
IC CMOS 4 CIRCUIT 16SSOP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The OPA4353EA/2K5 is a high-speed, quad-channel operational amplifier manufactured by Texas Instruments. This component is designed for single-supply, rail-to-rail operation, making it suitable for a wide range of applications requiring precision and speed. It is part of the MicroAmplifier™ series and is available in a 16-SSOP package. The OPA4353EA/2K5 is RoHS compliant and targets industries such as industrial automation, consumer electronics, and automotive electronics, where high performance and reliability are critical.

Key Specifications

ParameterValueUnitNotes
ModelOPA4353EA/2K5--
ManufacturerTexas Instruments--
FunctionHigh-Speed Operational Amplifier--
Channels4Channel-
Gain Bandwidth Product (GBP)44MHz-
Slew Rate (SR)22V/µs-
Voltage Gain122dB-
Common Mode Rejection Ratio (CMRR)60dB-
Input Bias Current (Ib)0.00001µA@ 5.5 V
Input Offset Voltage (Vos)8mV-
Maximum Supply Voltage5.5V-
Minimum Supply Voltage2.7V-
Operating Supply Current32mA-
Maximum Operating Temperature+85°C-
PackageSSOP-16--
Factory Pack Quantity2500--
Unit Weight73.800mg-

Key Features

  • Quad-channel design for multi-channel applications.
  • Rail-to-rail input and output operation for wide dynamic range.
  • High gain bandwidth product (44 MHz) and slew rate (22 V/µs) for fast signal processing.
  • Low input bias current (0.00001 µA) and offset voltage (8 mV) for precision applications.
  • Single-supply operation (2.7 V to 5.5 V) for flexibility in power management.
  • RoHS compliance ensures environmental safety.

Applications

The OPA4353EA/2K5 is widely used in industrial automation for signal conditioning and control systems. In consumer electronics, it is employed in audio amplifiers and signal processing circuits. Automotive electronics benefit from its reliability and performance in sensor interfaces and motor control applications. Its rail-to-rail operation and high-speed capabilities make it ideal for portable devices, medical instruments, and communication systems.

Q & A

1. What is the operating voltage range of the OPA4353EA/2K5?

The operating voltage range is 2.7 V to 5.5 V.

2. How many channels does the OPA4353EA/2K5 have?

It has four channels.

3. What is the gain bandwidth product of this amplifier?

The gain bandwidth product is 44 MHz.

4. Is the OPA4353EA/2K5 RoHS compliant?

Yes, it is RoHS compliant.

5. What is the maximum slew rate of the OPA4353EA/2K5?

The maximum slew rate is 22 V/µs.

6. What is the input bias current of this amplifier?

The input bias current is 0.00001 µA at 5.5 V.

7. What is the package type of the OPA4353EA/2K5?

It comes in a 16-SSOP package.

8. What is the maximum operating temperature?

The maximum operating temperature is +85°C.

9. What are the typical applications of the OPA4353EA/2K5?

Typical applications include industrial automation, consumer electronics, and automotive electronics.

10. What is the factory pack quantity for this component?

The factory pack quantity is 2500 units.

Product Attributes

Amplifier Type:CMOS
Number of Circuits:4
Output Type:Rail-to-Rail
Slew Rate:22V/µs
Gain Bandwidth Product:44 MHz
-3db Bandwidth:-
Current - Input Bias:0.5 pA
Voltage - Input Offset:3 mV
Current - Supply:5.2mA (x4 Channels)
Current - Output / Channel:40 mA
Voltage - Supply Span (Min):2.5 V
Voltage - Supply Span (Max):5.5 V
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:16-SSOP (0.154", 3.90mm Width)
Supplier Device Package:16-SSOP
0 Remaining View Similar

In Stock

$2.75
117

Please send RFQ , we will respond immediately.

Same Series
DD62M3200T0/AA
DD62M3200T0/AA
CONN D-SUB HD PLUG 62P VERT SLDR
DD15S10LVLS
DD15S10LVLS
CONN D-SUB HD RCPT 15POS CRIMP
DD15S200T2S
DD15S200T2S
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S20LT2S
DD15S20LT2S
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S20LV5S
DD15S20LV5S
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S20Z00
DD15S20Z00
CONN D-SUB HD RCPT 15P SLDR CUP
CBC9W4S10HV3S/AA
CBC9W4S10HV3S/AA
CONN D-SUB RCPT 9POS CRIMP
DD26S10HT0/AA
DD26S10HT0/AA
CONN D-SUB HD RCPT 26POS CRIMP
DD26S200EX
DD26S200EX
CONN D-SUB HD RCPT 26P SLDR CUP
DD62M32S60V3S/AA
DD62M32S60V3S/AA
CONN D-SUB HD PLUG 62P VERT SLDR
DD44S3200TX
DD44S3200TX
CONN D-SUB HD RCPT 44P VERT SLDR
DD44S32S0V30
DD44S32S0V30
CONN D-SUB HD RCPT 44P VERT SLDR

Similar Products

Part Number OPA4353EA/2K5 OPA4353UA/2K5 OPA4343EA/2K5 OPA4350EA/2K5
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Product Status Obsolete Active Active Active
Amplifier Type CMOS CMOS CMOS CMOS
Number of Circuits 4 4 4 4
Output Type Rail-to-Rail Rail-to-Rail Rail-to-Rail Rail-to-Rail
Slew Rate 22V/µs 22V/µs 6V/µs 22V/µs
Gain Bandwidth Product 44 MHz 44 MHz 5.5 MHz 38 MHz
-3db Bandwidth - - - -
Current - Input Bias 0.5 pA 0.5 pA 0.2 pA 0.5 pA
Voltage - Input Offset 3 mV 3 mV 2 mV 150 µV
Current - Supply 5.2mA (x4 Channels) 5.2mA (x4 Channels) 850µA (x4 Channels) 5.2mA (x4 Channels)
Current - Output / Channel 40 mA 40 mA 50 mA 40 mA
Voltage - Supply Span (Min) 2.5 V 2.5 V 2.5 V 2.7 V
Voltage - Supply Span (Max) 5.5 V 5.5 V 5.5 V 5.5 V
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 16-SSOP (0.154", 3.90mm Width) 14-SOIC (0.154", 3.90mm Width) 16-SSOP (0.154", 3.90mm Width) 16-SSOP (0.154", 3.90mm Width)
Supplier Device Package 16-SSOP 14-SOIC 16-SSOP 16-SSOP
