Overview
The OPA4336EA/250 is a high-performance operational amplifier (op-amp) manufactured by Texas Instruments. This product belongs to the MicroAmplifier™ series and is designed for single-supply, micropower applications. It is a CMOS-based op-amp, offering rail-to-rail output and low power consumption, making it ideal for battery-powered devices and portable electronics. The OPA4336EA/250 is widely used in industrial, automotive, and consumer electronics due to its reliability and versatility.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Supply Voltage | 2.7 to 5.5 | V | Single-supply operation |
| Bandwidth | 100 | kHz | Gain bandwidth product |
| Input Offset Voltage | 500 | µV | Maximum value |
| Quiescent Current | 20 | µA | Low power consumption |
| Operating Temperature | -40 to +85 | °C | Wide temperature range |

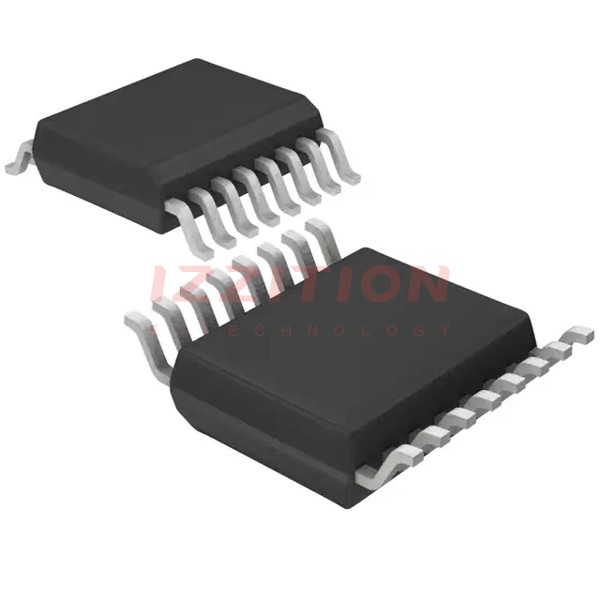

| Package | SSOP-16 | - | Surface mount |
Key Features
- Rail-to-rail output for maximum dynamic range
- Low quiescent current of 20 µA, ideal for battery-powered applications
- Wide supply voltage range (2.7 V to 5.5 V) for flexibility in design
- CMOS technology ensures low noise and high precision
- Compact SSOP-16 package for space-constrained designs
Applications
The OPA4336EA/250 is suitable for a wide range of applications, including signal conditioning, sensor amplification, and portable medical devices. Its low power consumption and rail-to-rail output make it particularly useful in battery-powered systems such as handheld instruments and IoT devices. Additionally, it is employed in automotive electronics for sensor interfacing and in consumer electronics for audio amplification and signal processing.
Q & A
1. What is the supply voltage range of the OPA4336EA/250?
The supply voltage range is 2.7 V to 5.5 V, supporting single-supply operation.
2. What is the bandwidth of this op-amp?
The gain bandwidth product is 100 kHz.
3. Is the OPA4336EA/250 suitable for battery-powered devices?
Yes, its low quiescent current of 20 µA makes it ideal for battery-powered applications.
4. What is the maximum input offset voltage?
The maximum input offset voltage is 500 µV.
5. What is the operating temperature range?
It operates from -40°C to +85°C, suitable for a wide range of environments.
6. What package does the OPA4336EA/250 come in?
It is available in an SSOP-16 package.
7. Can this op-amp be used in automotive applications?
Yes, it is commonly used in automotive sensor interfacing.
8. Does it support rail-to-rail output?
Yes, it provides rail-to-rail output for maximum dynamic range.
9. What is the quiescent current of the OPA4336EA/250?
The quiescent current is 20 µA.
10. Is this op-amp RoHS compliant?
Yes, it is RoHS compliant and lead-free.
