Overview
The OPA4325IPWR is a quad-channel operational amplifier produced by Texas Instruments. It is part of the OPAx325 family, which includes precision, low-voltage complementary metal-oxide semiconductor (CMOS) operational amplifiers. This device is optimized for very low noise and wide bandwidth while operating on a low quiescent current. The OPA4325 is particularly suited for applications requiring high accuracy, low power consumption, and wide supply voltage range.
Key Specifications
| Parameter | Typical Value | Unit |
|---|---|---|
| Bandwidth | 10 MHz | |
| Quiescent Current per Amplifier | 0.65 mA | |
| Input Noise Voltage | 9 nV/√Hz at 10 kHz | |
| Slew Rate | 5 V/μs | |
| Input Bias Current | 0.2 pA | |
| Common-Mode Rejection Ratio (CMRR) | 114 dB | |
| Supply Voltage Range | 2.2 V to 5.5 V | |
| Output Voltage Swing | Within 10 mV of the rails | |

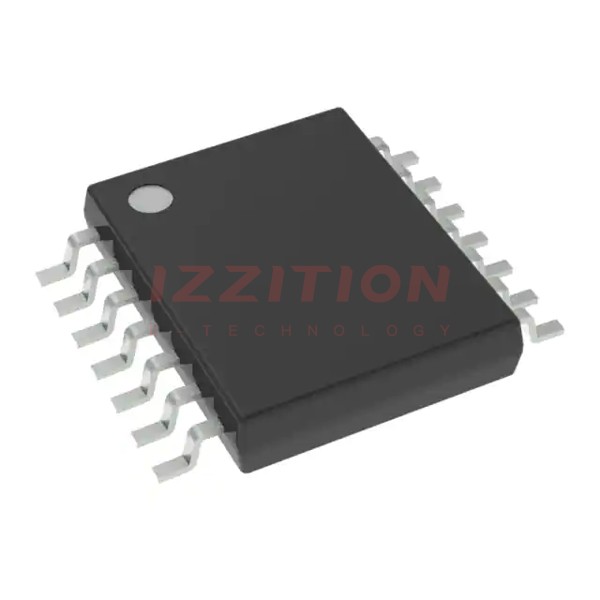

| Package | TSSOP-14 |
Key Features
- Low noise: 9 nV/√Hz at 10 kHz
- Wide bandwidth: 10 MHz
- Low quiescent current: 650 μA per channel
- High CMRR: 114 dB
- Rail-to-rail I/O
- Zero-crossover distortion
- High slew rate: 5 V/μs
- Unity-gain stable
- Wide supply voltage range: 2.2 V to 5.5 V
Applications
- High-Z sensor signal conditioning
- Transimpedance amplifiers
- Test and measurement equipment
- Programmable logic controllers (PLCs)
- Motor control loops
- Communications
- Input, output ADC, and DAC buffers
- Active filters
Q & A
- What is the bandwidth of the OPA4325?
The bandwidth of the OPA4325 is 10 MHz. - What is the quiescent current per amplifier for the OPA4325?
The quiescent current per amplifier is 0.65 mA. - What is the input noise voltage of the OPA4325?
The input noise voltage is 9 nV/√Hz at 10 kHz. - What is the slew rate of the OPA4325?
The slew rate is 5 V/μs. - What is the input bias current of the OPA4325?
The input bias current is 0.2 pA. - What is the common-mode rejection ratio (CMRR) of the OPA4325?
The CMRR is 114 dB. - What is the supply voltage range for the OPA4325?
The supply voltage range is from 2.2 V to 5.5 V. - What is the output voltage swing of the OPA4325?
The output voltage typically swings within 10 mV of the rails. - In what package is the OPA4325 available?
The OPA4325 is available in a TSSOP-14 package. - What are some typical applications of the OPA4325?
Typical applications include high-Z sensor signal conditioning, transimpedance amplifiers, test and measurement equipment, and more.
