Overview
The OPA4197IPW is a high-precision operational amplifier produced by Texas Instruments. It is designed for applications requiring low noise, low offset voltage, and high accuracy. This model is part of the OPAx197 series, which is widely used in industrial, automotive, and consumer electronics due to its robust performance and reliability. The OPA4197IPW is particularly suited for precision signal conditioning, sensor amplification, and active filtering, making it a versatile choice for engineers and designers.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Supply Voltage | ±2.25 to ±18 | V | Dual Supply |
| Input Offset Voltage | 25 | µV | Max |
| Input Bias Current | 0.2 | pA | Typical |
| Gain Bandwidth Product | 10 | MHz | Typical |
| Slew Rate | 20 | V/µs | Typical |
| Operating Temperature | -40 to 125 | °C | |

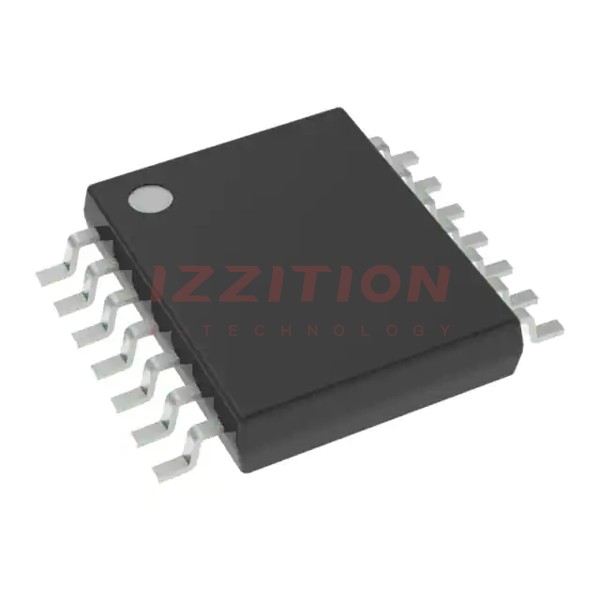

| Package | TSSOP-14 |
Key Features
- Low noise and low offset voltage for precision applications.
- Wide supply voltage range for flexibility in various designs.
- High gain bandwidth product and slew rate for fast signal processing.
- Robust performance across a wide temperature range.
- Available in a compact TSSOP-14 package for space-constrained applications.
Applications
The OPA4197IPW is ideal for use in precision instrumentation, sensor signal conditioning, and active filtering. It is also well-suited for industrial control systems, medical equipment, and automotive electronics where high accuracy and reliability are critical. Its low noise and high-speed performance make it a preferred choice for audio processing and data acquisition systems.
Q & A
1. What is the typical input offset voltage of the OPA4197IPW?
The typical input offset voltage is 25 µV.
2. What is the supply voltage range for the OPA4197IPW?
The supply voltage range is ±2.25 to ±18 V.
3. What is the gain bandwidth product of this operational amplifier?
The gain bandwidth product is 10 MHz.
4. What package does the OPA4197IPW come in?
It is available in a TSSOP-14 package.
5. What are the typical applications for the OPA4197IPW?
Typical applications include precision instrumentation, sensor signal conditioning, and active filtering.
6. What is the operating temperature range of the OPA4197IPW?
The operating temperature range is -40 to 125 °C.
7. How does the OPA4197IPW perform in low-noise applications?
It features low noise and low offset voltage, making it suitable for low-noise applications.
8. What is the slew rate of the OPA4197IPW?
The slew rate is 20 V/µs.
9. Is the OPA4197IPW suitable for automotive electronics?
Yes, it is designed to meet the stringent requirements of automotive electronics.
10. What makes the OPA4197IPW a good choice for industrial control systems?
Its high precision, wide supply voltage range, and robust performance make it ideal for industrial control systems.
