Overview

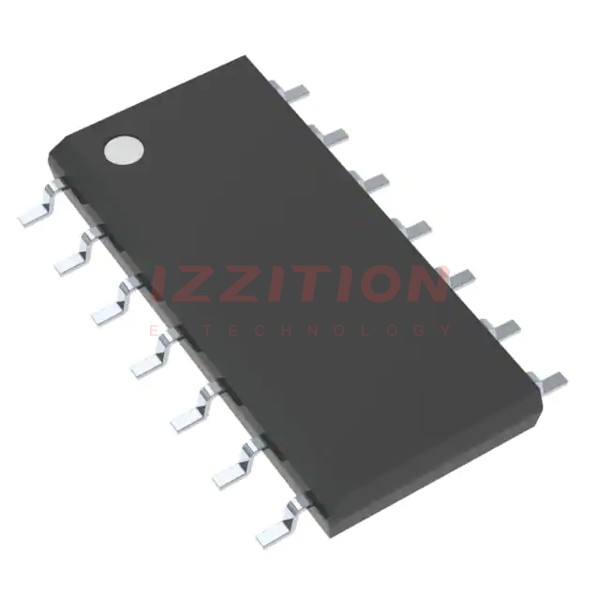

The OPA4171AIDR is a quad, low-power operational amplifier produced by Texas Instruments. This device is designed for general-purpose applications and features a single-supply operation with a maximum voltage rating of 36V. It operates at a bandwidth of 3 MHz, making it suitable for a variety of analog signal processing tasks. The OPA4171AIDR is packaged in a 14-pin SOIC (D) package, which is compact and suitable for space-constrained designs.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Channels | 4 (Quad) |
| Supply Voltage | Up to 36V |
| Bandwidth | 3 MHz |
| Package Type | SOIC (D) 14-pin |
| Operating Temperature Range | -40°C to 125°C |
| Input Offset Voltage | Typically 0.5 mV |
| Input Bias Current | Typically 2 nA |
| Quiescent Current per Channel | Typically 425 μA |
Key Features
- Low power consumption with a quiescent current of typically 425 μA per channel
- High bandwidth of 3 MHz for various analog signal processing applications
- Single-supply operation with a maximum voltage rating of 36V
- Low input offset voltage and input bias current for high accuracy
- Compact SOIC (D) 14-pin package suitable for space-constrained designs
Applications
The OPA4171AIDR is suitable for a wide range of general-purpose analog signal processing applications, including:
- Audio and video signal processing
- Industrial control systems
- Medical devices
- Automotive systems
- Test and measurement equipment
Q & A
- What is the maximum supply voltage for the OPA4171AIDR?
The maximum supply voltage for the OPA4171AIDR is 36V. - What is the bandwidth of the OPA4171AIDR?
The bandwidth of the OPA4171AIDR is 3 MHz. - What is the package type of the OPA4171AIDR?
The OPA4171AIDR is packaged in a 14-pin SOIC (D) package. - What is the operating temperature range of the OPA4171AIDR?
The operating temperature range of the OPA4171AIDR is -40°C to 125°C. - How many channels does the OPA4171AIDR have?
The OPA4171AIDR is a quad operational amplifier, meaning it has 4 channels. - What is the typical quiescent current per channel for the OPA4171AIDR?
The typical quiescent current per channel for the OPA4171AIDR is 425 μA. - What is the typical input offset voltage of the OPA4171AIDR?
The typical input offset voltage of the OPA4171AIDR is 0.5 mV. - What is the typical input bias current of the OPA4171AIDR?
The typical input bias current of the OPA4171AIDR is 2 nA. - Is the OPA4171AIDR suitable for high-precision applications?
Yes, the OPA4171AIDR is suitable for high-precision applications due to its low input offset voltage and input bias current. - Can the OPA4171AIDR be used in automotive systems?
Yes, the OPA4171AIDR can be used in automotive systems due to its wide operating temperature range and robust specifications.
