Overview
The OPA2734AIDGSR is a high-performance operational amplifier (op-amp) manufactured by Texas Instruments. Designed for precision applications, this dual-channel op-amp operates with a rail-to-rail input and output, making it suitable for a wide range of voltage levels. It is housed in an MSOP-10 package, ensuring a compact footprint for space-constrained designs. The OPA2734AIDGSR is ideal for applications requiring low noise, low power consumption, and high accuracy, such as sensor signal conditioning, portable instrumentation, and battery-powered devices.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Manufacturer | Texas Instruments | - | - |
| Product Category | Operational Amplifiers | - | - |

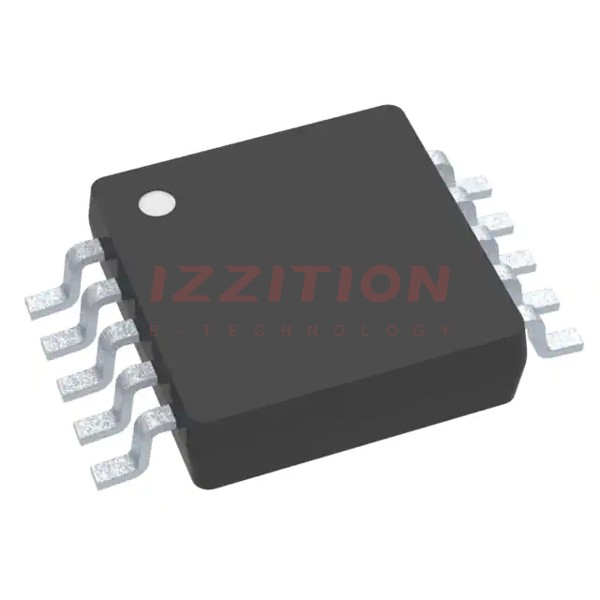

| Package | MSOP-10 | - | - |
| Supply Voltage (Max) | 5.5 | V | - |
| Supply Voltage (Min) | 2.7 | V | - |
| Number of Channels | 2 | - | - |
| Gain Bandwidth Product | 6.5 | MHz | - |
| Slew Rate | 5 | V/µs | - |
| Input Bias Current | 10 | pA | - |
| Input Offset Voltage | 5 | mV | - |
| Operating Temperature | -40 to +125 | °C | - |
| Shutdown Feature | Yes | - | - |
| Input Type | Rail-to-Rail | - | - |
| Output Type | Rail-to-Rail | - | - |
| Technology | CMOS | - | - |
| Factory Pack Quantity | 2500 | - | - |
Key Features
- Rail-to-rail input and output for wide dynamic range.
- Low quiescent current of 585 µA, ideal for battery-powered applications.
- Shutdown feature for power-saving modes.
- Compact MSOP-10 package for space-efficient designs.
- Low input bias current and offset voltage for precision applications.
Applications
The OPA2734AIDGSR is widely used in precision applications such as sensor signal conditioning, temperature measurement, and electronic scales. Its low power consumption and shutdown feature make it suitable for portable and battery-powered devices. Additionally, it is employed in medical instruments and handheld test equipment where accuracy and reliability are critical.
Q & A
1. What is the operating voltage range of the OPA2734AIDGSR?
The operating voltage range is 2.7 V to 5.5 V.
2. Does the OPA2734AIDGSR support shutdown mode?
Yes, it includes a shutdown feature for power-saving modes.
3. What is the gain bandwidth product of this op-amp?
The gain bandwidth product is 6.5 MHz.
4. What is the package type of the OPA2734AIDGSR?
It is housed in an MSOP-10 package.
5. Is the OPA2734AIDGSR suitable for battery-powered devices?
Yes, its low quiescent current and shutdown feature make it ideal for battery-powered applications.
6. What is the input offset voltage of this op-amp?
The input offset voltage is 5 mV.
7. Can the OPA2734AIDGSR operate in extreme temperatures?
Yes, it operates within a temperature range of -40 °C to +125 °C.
8. What is the input bias current of the OPA2734AIDGSR?
The input bias current is 10 pA.
9. Does this op-amp support rail-to-rail operation?
Yes, it features rail-to-rail input and output.
10. What is the factory pack quantity for the OPA2734AIDGSR?
The factory pack quantity is 2500 units.
