Overview

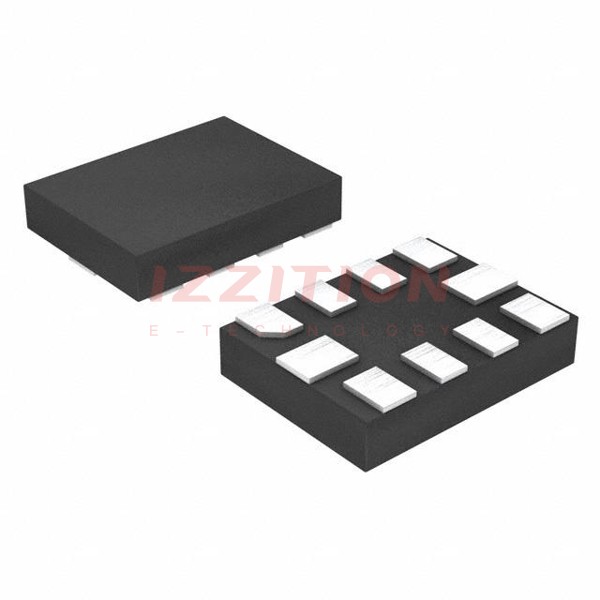

The OPA2607, specifically the OPA2607SIRUGR, is a decompensated, general-purpose CMOS operational amplifier produced by Texas Instruments. This device is part of the OPAx607 family and is known for its low noise, wide bandwidth, and rail-to-rail output. It is optimized for low supply voltage operation and is suitable for a variety of applications requiring a balance between cost and performance.
The OPA2607 features high-impedance CMOS inputs, making it ideal for interfacing with sensors that have high output impedance, such as piezoelectric transducers. The device also includes a Power Down mode, which reduces the quiescent current to less than 1 µA, making it suitable for battery-powered portable applications.
Key Specifications
| Parameter | Minimum | Typical | Maximum | Unit |
|---|---|---|---|---|
| Gain Bandwidth Product (GBW) | - | 50 | - | MHz |
| Quiescent Current per Amplifier | - | 900 | 1100 | µA |
| Broadband Noise | - | 3.8 | - | nV/√Hz |
| Input Offset Voltage | -0.6 | 0.12 | 0.6 | mV |
| Input Offset Voltage Drift | - | 1.5 | - | µV/°C |
| Input Bias Current | - | - | 10 | pA |
| Supply Range | 2.2 | - | 5.5 | V |
| Output Voltage Swing from Supply Rails | - | - | 8 | mV |
| Power Down Current | - | - | 1 | µA |
Key Features
- Decompensated, minimum gain of 6 V/V stable
- Rail-to-Rail Output (RRO)
- High-impedance CMOS inputs
- Low noise of 3.8 nV/√Hz
- Wide bandwidth of 50 MHz
- Power Down mode with quiescent current less than 1 µA
- Supply range from 2.2 V to 5.5 V
- Operating temperature range from –40°C to +125°C
Applications
- Current-Sensing
- Fish Finders and Sonar
- Ultrasonic Flow Meters
- Garden and Power Tools
- Printers
- Light Curtains and Safety Guards
- Optical Modules
- Handheld Test Equipment
- PM2.5 and PM10 Particle Sensors
Q & A
- What is the gain bandwidth product (GBW) of the OPA2607?
The GBW of the OPA2607 is 50 MHz.
- What is the typical quiescent current per amplifier for the OPA2607?
The typical quiescent current per amplifier is 900 µA.
- What is the broadband noise of the OPA2607?
The broadband noise is 3.8 nV/√Hz.
- What is the input offset voltage of the OPA2607?
The typical input offset voltage is 0.12 mV.
- What is the supply voltage range for the OPA2607?
The supply voltage range is from 2.2 V to 5.5 V.
- Does the OPA2607 have a Power Down mode?
Yes, the OPA2607 has a Power Down mode with a quiescent current of less than 1 µA.
- What are the typical applications of the OPA2607?
The OPA2607 is used in applications such as current-sensing, fish finders, ultrasonic flow meters, garden and power tools, printers, light curtains, optical modules, handheld test equipment, and particle sensors.
- What is the operating temperature range of the OPA2607?
The operating temperature range is from –40°C to +125°C.
- What is the output voltage swing from the supply rails for the OPA2607?
The output voltage can swing up to 8 mV from the supply rails.
- What package options are available for the OPA2607?
The OPA2607 is available in packages such as SOIC, VSSOP, and X2QFN.
