Overview
The OPA2378AIDCNT is a precision operational amplifier (op-amp) produced by Texas Instruments. This dual-channel op-amp is designed for applications requiring high accuracy, low noise, and low power consumption. It is part of Texas Instruments' portfolio of precision analog components, targeting industries such as industrial automation, medical devices, and test and measurement equipment. The OPA2378AIDCNT stands out for its excellent DC precision, low offset voltage, and low drift, making it ideal for signal conditioning and amplification in precision systems.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Supply Voltage Range | 2.2 to 5.5 | V | Single or dual supply |
| Input Offset Voltage | ±25 | µV | Max |
| Input Bias Current | ±0.2 | pA | Typical |
| Gain Bandwidth Product | 10 | MHz | Typical |
| Slew Rate | 5 | V/µs | Typical |
| Quiescent Current | 1.25 | mA | Per channel |
| Operating Temperature Range | -40 to 125 | °C | |

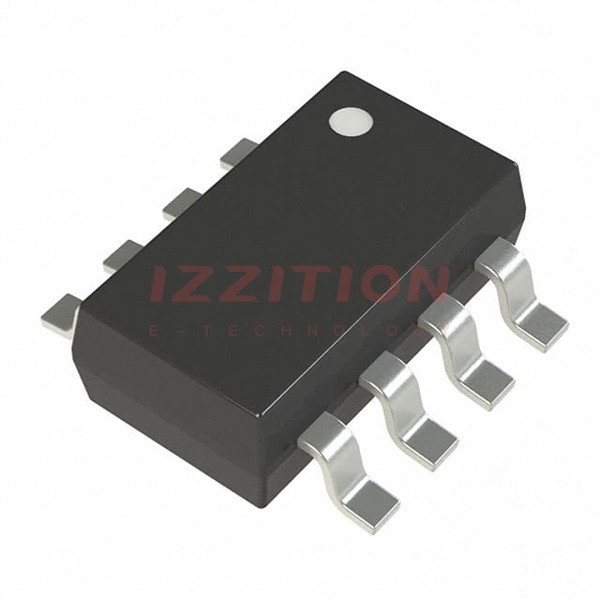

| Package | HVSSOP-8 |
Key Features
- High precision with low offset voltage and low drift
- Low noise for accurate signal amplification
- Wide supply voltage range for flexibility in various applications
- Low power consumption, suitable for battery-powered devices
- Small form factor in HVSSOP-8 package for space-constrained designs
Applications
The OPA2378AIDCNT is widely used in precision applications such as:
- Industrial Automation: Signal conditioning for sensors and control systems.
- Medical Devices: Amplification of low-level signals in diagnostic equipment.
- Test and Measurement: High-accuracy signal processing in instrumentation.
- Consumer Electronics: Audio signal processing and sensor interfacing.
- Automotive Electronics: Precision sensing and control in automotive systems.
Q & A
1. What is the supply voltage range for the OPA2378AIDCNT?
The supply voltage range is 2.2V to 5.5V, suitable for both single and dual supply configurations.
2. What is the typical input offset voltage?
The typical input offset voltage is ±25 µV, ensuring high precision.
3. Is the OPA2378AIDCNT suitable for low-power applications?
Yes, it has a low quiescent current of 1.25 mA per channel, making it ideal for battery-powered devices.
4. What is the gain bandwidth product of this op-amp?
The gain bandwidth product is 10 MHz, providing sufficient bandwidth for most precision applications.
5. Can the OPA2378AIDCNT operate in harsh environments?
Yes, it has an operating temperature range of -40°C to 125°C, suitable for industrial and automotive applications.
6. What package does the OPA2378AIDCNT come in?
It is available in an HVSSOP-8 package, which is compact and suitable for space-constrained designs.
7. What is the typical input bias current?
The typical input bias current is ±0.2 pA, minimizing errors in high-impedance circuits.
8. Is the OPA2378AIDCNT suitable for audio applications?
Yes, its low noise and high precision make it suitable for audio signal processing.
9. What is the slew rate of this op-amp?
The slew rate is 5 V/µs, ensuring fast signal response.
10. Where can I find detailed technical documentation for the OPA2378AIDCNT?
Detailed technical documentation can be found on the Texas Instruments official website or through authorized distributors like Digi-Key, Mouser, and Arrow Electronics.
