Overview

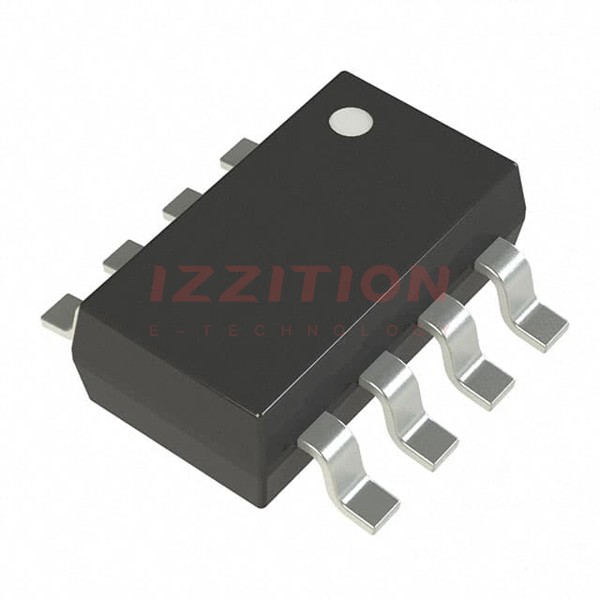

The OPA2374AIDCNR is a dual-channel operational amplifier produced by Texas Instruments. It is part of the OPA2374 family, known for its low power consumption, low cost, and excellent bandwidth. This CMOS operational amplifier is designed for a wide range of applications requiring high performance and low power usage.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Number of Channels | 2 | |
| Bandwidth | 6.5 MHz | |
| Slew Rate | 5 V/μs | |
| Input Offset Voltage | 1 - 5 mV | |
| Input Offset Voltage Drift | 3 μV/°C | |
| Power Supply Range | 2.7 V to 5.5 V | |
| Quiescent Current | 585 μA | |
| Package Type | SOT23-8 | |
| Operating Temperature Range | -40°C to 125°C | |
| Thermal Resistance (Junction to Ambient) | 171.3 °C/W |
Key Features
- Low power consumption: 585 μA quiescent current per channel.
- High bandwidth: 6.5 MHz.
- High slew rate: 5 V/μs.
- Rail-to-rail input and output capability.
- Low input offset voltage and drift.
- High power supply rejection ratio (PSRR) and common-mode rejection ratio (CMRR).
- Compact SOT23-8 package.
Applications
- Portable electronics and battery-powered devices due to low power consumption.
- Audio and video circuits requiring high bandwidth and low noise.
- Medical devices and instrumentation where precision and low power are critical.
- Industrial control systems and automation.
- General-purpose analog signal processing.
Q & A
- What is the bandwidth of the OPA2374AIDCNR?
The bandwidth of the OPA2374AIDCNR is 6.5 MHz. - What is the slew rate of this operational amplifier?
The slew rate is 5 V/μs. - What is the typical quiescent current per channel?
The typical quiescent current per channel is 585 μA. - What is the input offset voltage range?
The input offset voltage range is 1 to 5 mV. - What is the operating temperature range of the OPA2374AIDCNR?
The operating temperature range is -40°C to 125°C. - What package type is the OPA2374AIDCNR available in?
The OPA2374AIDCNR is available in an SOT23-8 package. - Is the OPA2374AIDCNR RoHS compliant?
Yes, the OPA2374AIDCNR is RoHS compliant. - What are some common applications for the OPA2374AIDCNR?
Common applications include portable electronics, audio and video circuits, medical devices, industrial control systems, and general-purpose analog signal processing. - What is the thermal resistance (junction to ambient) of the OPA2374AIDCNR?
The thermal resistance (junction to ambient) is 171.3 °C/W. - Does the OPA2374AIDCNR have rail-to-rail input and output capability?
Yes, the OPA2374AIDCNR has rail-to-rail input and output capability.
