Overview

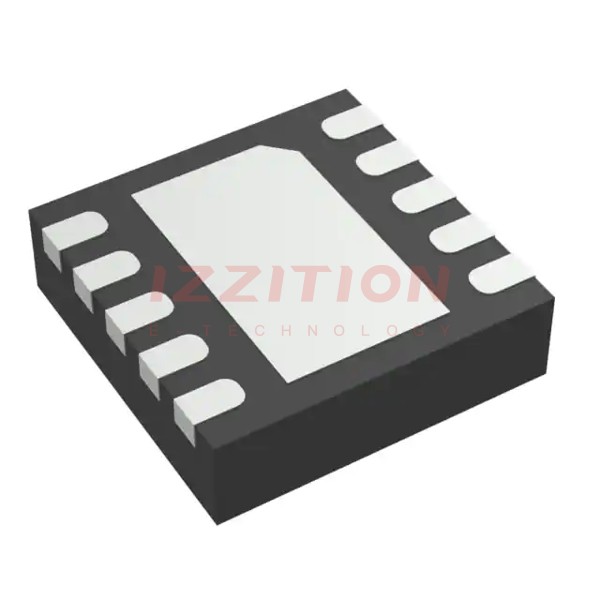

The OPA2373AIDRCR is a dual operational amplifier produced by Texas Instruments. This device is designed for applications requiring high performance, low power consumption, and design flexibility. It features a rail-to-rail input and output, making it suitable for a wide range of analog signal processing tasks. The amplifier is packaged in a 10-pin VSON (3x3) package, which is compact and suitable for space-constrained designs.
Key Specifications
| Specification | Value |
|---|---|
| Number of Channels | 2 |
| Input Type | Rail-to-Rail |
| Output Type | Rail-to-Rail |
| Bandwidth | 6.5 MHz |
| Supply Voltage Range | 2.7V to 5.5V |
| Quiescent Current | 585 μA (typical per channel) |
| Input Bias Current | 10 pA (typical) |
| Input Offset Voltage | 0.5 mV (typical) |
| Package Type | VSON-10 (3x3) |
| Pins | 10 |
Key Features
- Low offset voltage: 0.5 mV (typical)
- Low quiescent current: 585 μA (typical per channel)
- Low input bias current: 10 pA (typical)
- Rail-to-rail input and output
- Wide supply voltage range: 2.7V to 5.5V
- Compact VSON (3x3) package
- Shutdown feature available
Applications
The OPA2373AIDRCR is ideal for various applications that require low power consumption and high performance. These include:
- Analog signal processing in battery-powered devices
- Medical devices requiring low noise and high accuracy
- Aerospace and defense applications where low power and high reliability are crucial
- Industrial control systems and automation
- Consumer electronics such as audio equipment and sensors
Q & A
- What is the package type of the OPA2373AIDRCR? The OPA2373AIDRCR is packaged in a 10-pin VSON (3x3) package.
- What is the bandwidth of the OPA2373AIDRCR? The bandwidth of the OPA2373AIDRCR is 6.5 MHz.
- What is the typical quiescent current per channel? The typical quiescent current per channel is 585 μA.
- Does the OPA2373AIDRCR have a shutdown feature? Yes, the OPA2373AIDRCR has a shutdown feature.
- What is the input bias current of the OPA2373AIDRCR? The input bias current is 10 pA (typical).
- What is the supply voltage range for the OPA2373AIDRCR? The supply voltage range is from 2.7V to 5.5V.
- Is the OPA2373AIDRCR suitable for high-precision applications? Yes, it is suitable due to its low offset voltage and low noise characteristics.
- What are some common applications for the OPA2373AIDRCR? Common applications include analog signal processing in battery-powered devices, medical devices, aerospace and defense, industrial control systems, and consumer electronics.
- Is the OPA2373AIDRCR RoHS compliant? Yes, the OPA2373AIDRCR is RoHS compliant.
- Where can I find detailed specifications for the OPA2373AIDRCR? Detailed specifications can be found on the Texas Instruments website, as well as on distributor sites like Digi-Key, Mouser, and LCSC.
