Overview
The OPA2354AIDDARG3 is a high-performance, dual-channel operational amplifier (op-amp) manufactured by Texas Instruments. This product is designed for precision applications, offering low noise, low distortion, and high-speed performance. It is part of the OPA2354 series, which is widely recognized for its reliability and versatility in various electronic systems. The OPA2354AIDDARG3 is particularly suitable for applications requiring high accuracy and stability, such as medical devices, audio processing, and industrial control systems. Its market competitiveness lies in its ability to deliver exceptional performance in a compact package, making it an ideal choice for space-constrained designs.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Number of Channels | 2 | - | Dual-channel configuration |
| Supply Voltage | 2.5 to 5.5 | V | Wide operating range |
| Gain Bandwidth Product | 50 | MHz | High-speed performance |
| Slew Rate | 25 | V/µs | Fast response time |
| Input Offset Voltage | ±0.5 | mV | Low offset for precision |
| Input Bias Current | ±0.5 | pA | Minimal current draw |
| Operating Temperature Range | -40 to +125 | °C | Wide temperature tolerance |

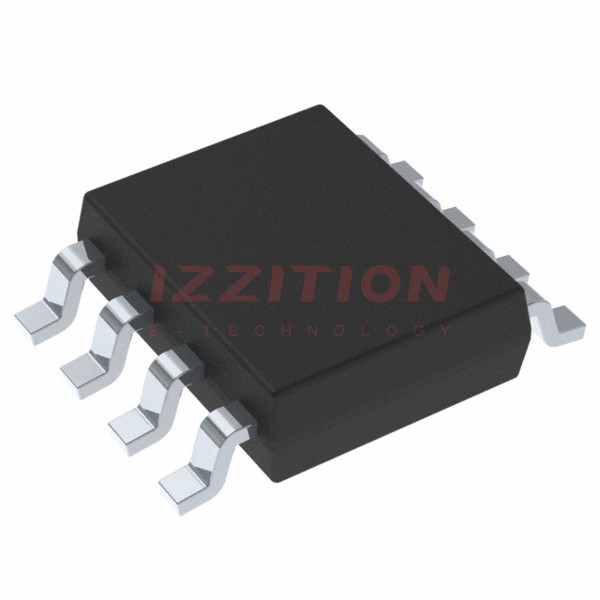

| Package | VSSOP-8 | - | Compact form factor |
Key Features
- Low noise and distortion for high-fidelity signal processing.
- High-speed performance with a gain bandwidth product of 50 MHz.
- Wide supply voltage range (2.5V to 5.5V) for versatile applications.
- Low input offset voltage (±0.5 mV) ensures precision in measurements.
- Compact VSSOP-8 package ideal for space-constrained designs.
Applications
The OPA2354AIDDARG3 is widely used in various fields, including:
- Medical Devices: Precision signal amplification in diagnostic equipment.
- Audio Processing: High-fidelity audio signal amplification in consumer electronics.
- Industrial Control Systems: Accurate signal conditioning in automation and control systems.
- Test and Measurement: High-speed and low-noise signal processing in test equipment.
Q & A
1. What is the operating voltage range of the OPA2354AIDDARG3?
The OPA2354AIDDARG3 operates within a voltage range of 2.5V to 5.5V.
2. What is the gain bandwidth product of this op-amp?
The gain bandwidth product is 50 MHz, ensuring high-speed performance.
3. Is this op-amp suitable for audio applications?
Yes, its low noise and distortion make it ideal for high-fidelity audio processing.
4. What is the input offset voltage?
The input offset voltage is ±0.5 mV, ensuring precision in measurements.
5. What is the package type of the OPA2354AIDDARG3?
It comes in a compact VSSOP-8 package.
6. Can this op-amp be used in industrial environments?
Yes, its wide operating temperature range (-40°C to +125°C) makes it suitable for industrial applications.
7. What is the slew rate of the OPA2354AIDDARG3?
The slew rate is 25 V/µs, providing fast response times.
8. How many channels does this op-amp have?
It is a dual-channel op-amp, offering two independent amplification paths.
9. Is this op-amp suitable for battery-powered devices?
Yes, its low power consumption and wide voltage range make it ideal for battery-powered applications.
10. What are the typical applications of this op-amp?
Typical applications include medical devices, audio processing, industrial control systems, and test and measurement equipment.
