MSP430G2444IRHA40R
  • Share:

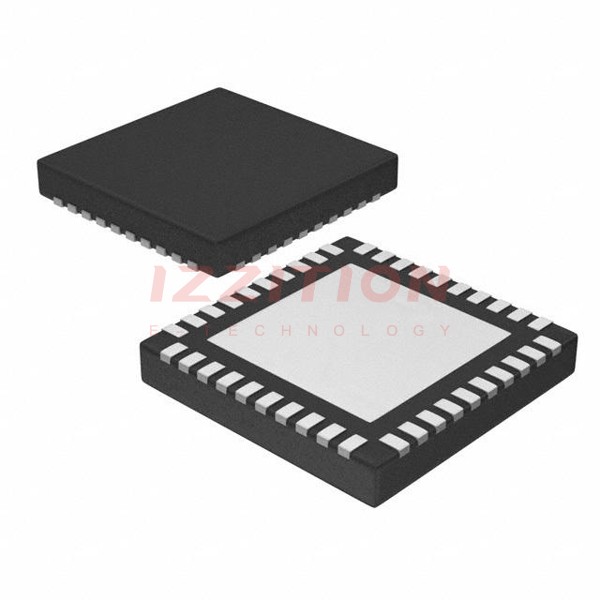

Texas Instruments MSP430G2444IRHA40R

Manufacturer No:
MSP430G2444IRHA40R
Manufacturer:
Texas Instruments
Package:
Tape & Reel (TR)
Description:
IC MCU 16BIT 8KB FLASH 40VQFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The Texas Instruments MSP430G2444IRHA40R is a member of the MSP430G2x44 family of ultra-low-power microcontrollers. This device is designed to optimize power consumption, making it ideal for battery-powered and portable measurement applications. The MSP430G2444 features a 16-bit RISC CPU with 16-bit registers and constant generators, contributing to maximum code efficiency. It also includes a range of peripherals such as timers, a universal serial communication interface (USCI), and a 10-bit analog-to-digital converter (ADC) with integrated reference and data transfer controller.

Key Specifications

Parameter Value Unit
Supply Voltage Range 1.8 to 3.6 V
Active Mode Power Consumption 270 µA at 1 MHz, 2.2 V
Standby Mode Power Consumption 1 µA
Off Mode (RAM Retention) Power Consumption 0.1 µA
ADC Resolution and Speed 10-bit, 200 ksps
Flash Memory 8 KB + 256 B
RAM 512 B
Timers 16-bit Timer_A and Timer_B with three capture/compare registers each
USCI UART, LIN, IrDA, SPI, I2C
Package Type QFN (40-pin RHA package)
Body Size 6 mm x 6 mm

Key Features

  • Ultra-low power consumption with five low-power modes.
  • 16-bit RISC CPU with 16-bit registers and constant generators.
  • 10-bit analog-to-digital converter (ADC) with internal reference, sample-and-hold, autoscan, and data transfer controller.
  • Brownout detector and ultra-fast wakeup from standby mode in less than 1 µs.
  • Serial onboard programming, no external programming voltage needed, and programmable code protection by security fuse.
  • Bootstrap loader (BSL) and on-chip emulation module.
  • Universal serial communication interface (USCI) supporting UART, LIN, IrDA, SPI, and I2C.
  • 16-bit timers (Timer_A and Timer_B) with three capture/compare registers each.
  • General-purpose digital I/O pins with pullup/down resistors.

Applications

  • Sensor systems that capture analog signals, convert them to digital values, and process the data for display or transmission to a host system.
  • Stand-alone radio-frequency (RF) sensor front ends.

Q & A

  1. What is the supply voltage range of the MSP430G2444? The supply voltage range is from 1.8 V to 3.6 V.
  2. How much power does the MSP430G2444 consume in active mode? It consumes 270 µA at 1 MHz, 2.2 V.
  3. What is the resolution and speed of the ADC on the MSP430G2444? The ADC is 10-bit with a speed of 200 ksps.
  4. How much flash memory and RAM does the MSP430G2444 have? It has 8 KB + 256 B of flash memory and 512 B of RAM.
  5. What types of timers are available on the MSP430G2444? It features 16-bit Timer_A and Timer_B with three capture/compare registers each.
  6. What communication interfaces are supported by the MSP430G2444? It supports UART, LIN, IrDA, SPI, and I2C through the USCI.
  7. In what package types is the MSP430G2444 available? It is available in a 40-pin QFN (RHA package) among other options.
  8. What are some typical applications of the MSP430G2444? Typical applications include sensor systems and stand-alone RF sensor front ends.
  9. Does the MSP430G2444 have any power-saving features? Yes, it has ultra-low power consumption with five low-power modes and fast wakeup from standby.
  10. How is the MSP430G2444 programmed? It supports serial onboard programming without the need for an external programming voltage.

Product Attributes

Core Processor:MSP430 CPU16
Core Size:16-Bit
Speed:16MHz
Connectivity:I²C, IrDA, LINbus, SCI, SPI, UART/USART
Peripherals:Brown-out Detect/Reset, POR, WDT
Number of I/O:32
Program Memory Size:8KB (8K x 8)
Program Memory Type:Flash
EEPROM Size:-
RAM Size:512 x 8
Voltage - Supply (Vcc/Vdd):1.8V ~ 3.6V
Data Converters:A/D 12x10b
Oscillator Type:Internal
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:40-VFQFN Exposed Pad
Supplier Device Package:40-VQFN (6x6)
