Overview
The MSP430FW423IPMR is a 16-bit ultra-low-power microcontroller produced by Texas Instruments. It is part of the MSP430 family, which is renowned for its energy efficiency and versatility. This model is particularly designed for applications requiring robust performance with minimal power consumption. It targets developers and engineers working on portable electronics, wireless sensor nodes, and medical devices, among others. Its unique selling points include its integrated peripherals, flexible clock system, and multiple power modes, making it a competitive choice in the microcontroller market.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Architecture | 16-bit RISC | - | High efficiency and low power |
| Flash Memory | 8 KB | KB | Supports complex program execution |
| RAM | 256 B | B | Sufficient for most embedded applications |
| Operating Voltage | 1.8 to 3.6 | V | Wide range for flexibility |
| Operating Temperature | -40 to 85 | °C | Suitable for harsh environments |

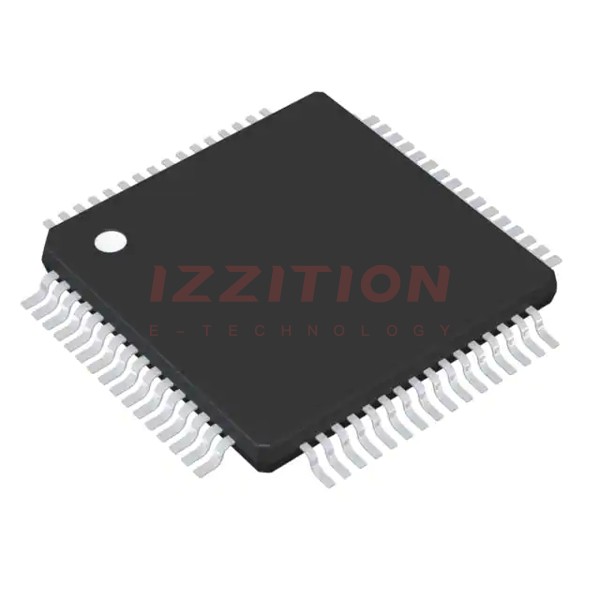

| Package | LQFP-64 | - | Compact and robust |
Key Features
- Ultra-low power consumption with multiple power modes
- Integrated peripherals including ADC, timers, and communication interfaces
- Flexible clock system supporting various low-power modes
- Robust design suitable for industrial and medical applications
Applications
The MSP430FW423IPMR is widely used in various fields such as industrial automation, consumer electronics, and medical devices. In industrial automation, it is utilized for control systems and sensor interfacing due to its low power and high reliability. In consumer electronics, it powers portable devices and wireless communication modules. In the medical field, it is employed in health monitoring devices and diagnostic equipment, benefiting from its energy efficiency and compact design.
Q & A
1. What is the operating voltage range of the MSP430FW423IPMR?
The operating voltage range is from 1.8V to 3.6V.
2. What type of memory does this microcontroller have?
It includes 8 KB of Flash memory and 256 B of RAM.
3. What are the key features of the MSP430FW423IPMR?
Key features include ultra-low power consumption, integrated peripherals, and a flexible clock system.
4. In what package is the MSP430FW423IPMR available?
It is available in an LQFP-64 package.
5. What is the typical application of this microcontroller?
Typical applications include industrial automation, consumer electronics, and medical devices.
6. What is the architecture of the MSP430FW423IPMR?
It is based on a 16-bit RISC architecture.
7. What is the operating temperature range?
The operating temperature range is from -40°C to 85°C.
8. Can this microcontroller be used in battery-powered devices?
Yes, its ultra-low power consumption makes it ideal for battery-powered devices.
9. What peripherals are integrated into the MSP430FW423IPMR?
Integrated peripherals include ADC, timers, and communication interfaces.
10. Is the MSP430FW423IPMR suitable for harsh environments?
Yes, its robust design and wide operating temperature range make it suitable for harsh environments.
