Overview
The MSP430F5244IRGZR is a 16-bit ultra-low-power microcontroller from Texas Instruments, designed for applications requiring high performance and minimal power consumption. It belongs to the MSP430F5xx family, which is known for its efficient processing capabilities and versatile peripheral integration. This model is particularly suitable for portable and battery-powered devices, offering a balance of performance and energy efficiency.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Core | 16-bit RISC | - | High coding efficiency |
| Flash Memory | 128 KB | KB | Program storage |
| SRAM | 16 KB | KB | Data storage |
| Operating Voltage | 1.8 to 3.6 | V | Wide range for flexibility |
| Operating Temperature | -40 to 85 | °C | Suitable for harsh environments |

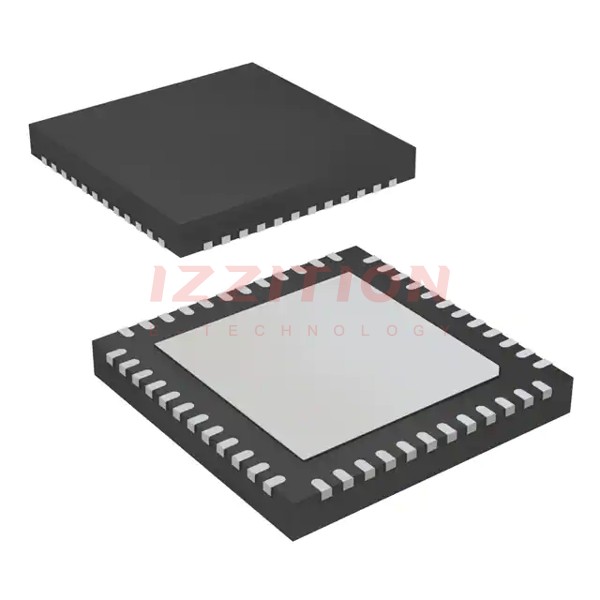

| Package | VQFN | - | 48-pin, compact design |
Key Features
- Ultra-low power consumption with multiple power-saving modes.
- Integrated 10-bit ADC for precise analog measurements.
- Multiple communication interfaces including USART, SPI, and I2C.
- Hardware multiplier and DMA for efficient data handling.
- Real-time clock with alarm functionality for time-critical applications.
Applications
The MSP430F5244IRGZR is widely used in various fields such as portable medical devices, industrial automation, and consumer electronics. Its low power consumption makes it ideal for battery-operated devices, while its robust peripheral set supports complex control tasks in industrial settings. Additionally, its compact size and efficient processing capabilities are beneficial in consumer electronics, enhancing product longevity and performance.
Q & A
What is the operating voltage range of the MSP430F5244IRGZR?
The operating voltage range is from 1.8V to 3.6V.
Can this microcontroller operate in harsh environments?
Yes, it can operate in temperatures ranging from -40°C to 85°C.
What type of ADC is integrated in the MSP430F5244IRGZR?
It includes a 10-bit ADC for analog measurements.
Does it support multiple communication protocols?
Yes, it supports USART, SPI, and I2C.
What is the significance of the hardware multiplier in this microcontroller?
The hardware multiplier enhances the speed of mathematical operations, crucial for efficient data processing.
Is the MSP430F5244IRGZR suitable for battery-powered devices?
Absolutely, its ultra-low power consumption makes it ideal for such applications.
What is the package type of this microcontroller?
It comes in a 48-pin VQFN package.
How much flash memory does it have?
It has 128 KB of flash memory.
What is the SRAM size in this microcontroller?
The SRAM size is 16 KB.
Can it be used in portable medical devices?
Yes, its features make it suitable for portable medical devices.
