Overview
The MSP430F4132IRGZT is a 16-bit ultra-low-power microcontroller (MCU) produced by Texas Instruments. This device is part of the MSP430 family, known for its energy efficiency and robust feature set. The MSP430F4132IRGZT is particularly suited for applications requiring low power consumption, advanced analog capabilities, and a high degree of integration.
Key Specifications
| Parameter | Specification |
|---|---|
| Clock Speed | Up to 8 MHz |
| Flash Memory | 8 KB |
| SRAM | 512 B |
| Analog-to-Digital Converter (ADC) | 10-bit |
| Communication Interfaces | I2C, SPI, UART |
| Comparator | Analog Comparator |
| LCD Segments | 144 segments |

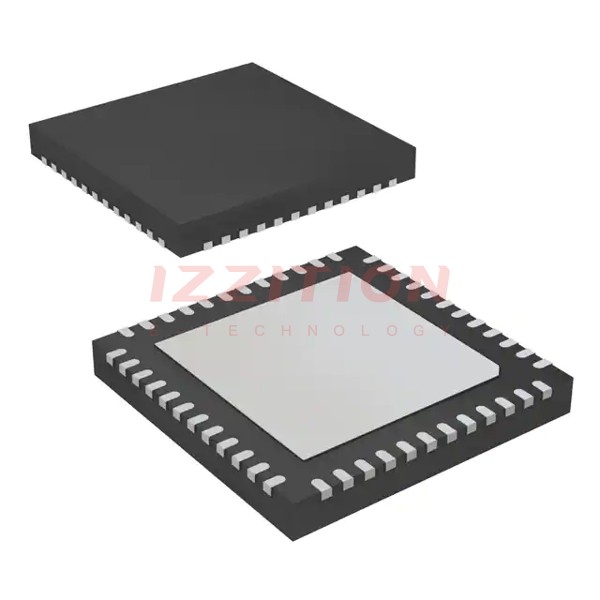

| Package Type | VQFN (RGZ) with 48 pins |
Key Features
- Ultra-low power consumption, making it suitable for battery-powered devices.
- High-performance 16-bit RISC CPU.
- Integrated 10-bit ADC for precise analog measurements.
- Multiple communication interfaces including I2C, SPI, and UART.
- Analog comparator for comparing analog signals.
- Support for a 144-segment LCD display.
- Low power modes to minimize energy usage.
Applications
The MSP430F4132IRGZT is versatile and can be used in a variety of applications, including:
- Battery-powered devices such as smart meters, remote controls, and wireless sensors.
- Industrial automation and control systems.
- Medical devices requiring low power and high precision.
- Consumer electronics like fitness trackers and smart home devices.
- Automotive systems, especially those requiring low power and robust performance.
Q & A
- What is the clock speed of the MSP430F4132IRGZT? The clock speed of the MSP430F4132IRGZT is up to 8 MHz.
- How much flash memory does the MSP430F4132IRGZT have? The MSP430F4132IRGZT has 8 KB of flash memory.
- What is the resolution of the ADC in the MSP430F4132IRGZT? The ADC in the MSP430F4132IRGZT has a resolution of 10 bits.
- What communication interfaces are available on the MSP430F4132IRGZT? The MSP430F4132IRGZT supports I2C, SPI, and UART communication interfaces.
- Does the MSP430F4132IRGZT have an integrated LCD driver? Yes, the MSP430F4132IRGZT supports a 144-segment LCD display.
- What is the package type of the MSP430F4132IRGZT? The MSP430F4132IRGZT comes in a VQFN (RGZ) package with 48 pins.
- What are some typical applications for the MSP430F4132IRGZT? Typical applications include battery-powered devices, industrial automation, medical devices, consumer electronics, and automotive systems.
- Is the MSP430F4132IRGZT suitable for low-power applications? Yes, the MSP430F4132IRGZT is designed for ultra-low power consumption, making it ideal for battery-powered devices.
- Does the MSP430F4132IRGZT have an analog comparator? Yes, the MSP430F4132IRGZT includes an analog comparator.
- How much SRAM does the MSP430F4132IRGZT have? The MSP430F4132IRGZT has 512 B of SRAM.
