Overview

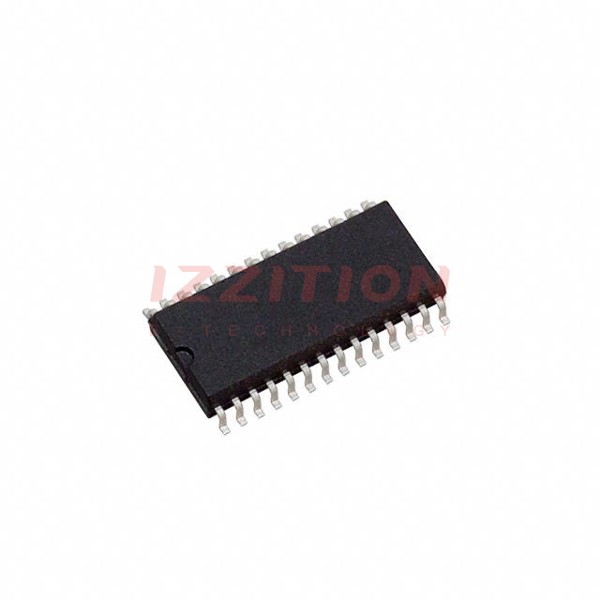

The MAX3243CDWRG4, manufactured by Texas Instruments, is a multichannel RS-232 interface IC designed for efficient communication in various electronic systems. This product falls under the category of RS-232 transceivers and is well-suited for applications requiring reliable data transmission at moderate speeds. The MAX3243CDWRG4 is particularly notable for its low power consumption, ESD protection, and compatibility with both 3.3 V and 5 V power supplies, making it a versatile choice for industrial, automotive, and consumer electronics.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Function | Transceiver | - | RS-232 interface |
| Data Rate | 250 | kb/s | - |
| Number of Drivers | 3 | - | - |
| Number of Receivers | 5 | - | - |
| Supply Voltage | 3.3 V, 5 V | - | - |
| Supply Current | 1 | mA | - |
| Shutdown Feature | Yes | - | - |
| Operating Temperature Range | 0 to +70 | °C | - |
| Package | SOIC-28 | - | Tube packaging |
| Factory Pack Quantity | 20 | - | - |
Key Features
- Supports data rates up to 250 kb/s for efficient communication.
- Features three drivers and five receivers for versatile connectivity.
- Operates with a supply voltage of 3.3 V or 5 V, ensuring compatibility with a wide range of systems.
- Includes a shutdown feature to reduce power consumption when not in use.
- Offers ESD protection up to ±15 kV, enhancing reliability in harsh environments.
Applications
The MAX3243CDWRG4 is widely used in applications requiring robust RS-232 communication. Its primary use cases include industrial automation systems, where reliable data transmission is critical, and automotive electronics, where it ensures stable communication between components. Additionally, it is employed in consumer electronics, such as printers and point-of-sale terminals, to facilitate seamless data exchange. Its low power consumption and ESD protection make it ideal for portable devices and environments with high electrostatic discharge risks.
Q & A
What is the maximum data rate supported by MAX3243CDWRG4?
The MAX3243CDWRG4 supports a maximum data rate of 250 kb/s.
Does this IC include ESD protection?
Yes, it provides ESD protection up to ±15 kV, ensuring reliability in harsh environments.
What is the operating voltage range for MAX3243CDWRG4?
It operates with a supply voltage of 3.3 V or 5 V.
How many drivers and receivers does this IC have?
It features three drivers and five receivers.
Is there a shutdown feature available?
Yes, the IC includes a shutdown feature to reduce power consumption when not in use.
What is the operating temperature range?
The operating temperature range is from 0°C to +70°C.
What is the package type for MAX3243CDWRG4?
It comes in an SOIC-28 package.
What is the factory pack quantity?
The factory pack quantity is 20 units per tube.
Is this IC RoHS compliant?
Yes, it is RoHS compliant and lead-free.
What are the typical applications of MAX3243CDWRG4?
Typical applications include industrial automation, automotive electronics, and consumer electronics such as printers and POS terminals.
