Overview

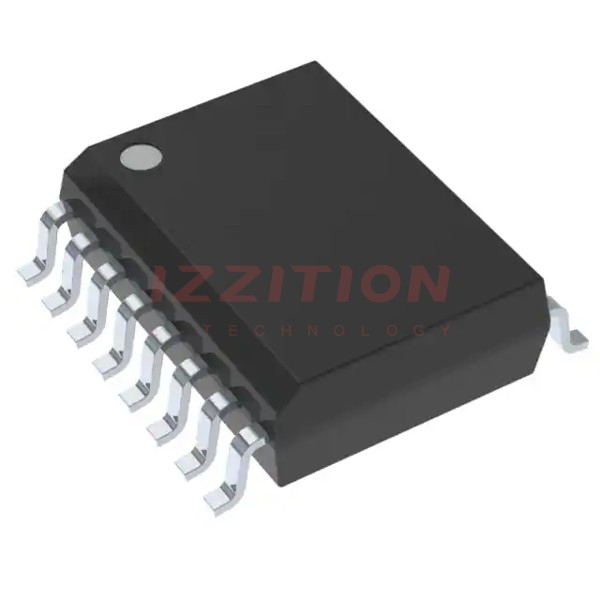

The LT1014DDW is a quad precision operational amplifier manufactured by Texas Instruments. It is part of the LT1014 series, which includes the LT1014, LT1014A, and LT1014D models. This amplifier is known for its low power consumption, high precision, and versatility in various operating conditions. The LT1014DDW is packaged in a 16-pin SOIC (DW) package and is suitable for a wide range of applications requiring high accuracy and low noise.
Key Specifications
Parameter | Value | Unit |
---|---|---|
Package Type | SOIC-16 | |
Operating Temperature Range | 0 to 70 | °C |
Input Offset Voltage | 300 µV Max at 25°C | µV |
Offset Voltage Temperature Coefficient | 2.5 µV/°C Max | µV/°C |
Input Offset Current | 1.5 nA Max at 25°C | nA |
Gain | 1.2 V/µV Min (RL = 2 kΩ), 0.5 V/µV Min (RL = 600 Ω) | V/µV |
Supply Current | 2.2 mA Max at 25°C | mA |
Peak-to-Peak Noise Voltage | 0.55 µV Typ | µV |
Current Noise | 0.07 pA/√Hz Typ | pA/√Hz |
Typical Dual Supply Voltage | ±15 V | V |
Typical Single Supply Voltage | 9 to 28 V | V |
Number of Channels per Chip | 4 | |
Dimensions | 10.28 x 7.52 x 2.35 mm | mm |
Mounting Type | Surface Mount | |
Typical Slew Rate | 0.4 V/µs | V/µs |
Typical Voltage Gain | 120 dB | dB |
Key Features
- Single-Supply Operation: The LT1014DDW can operate with a single supply voltage ranging from 5V to 44V, and its input voltage range extends to ground while the output can swing to ground while sinking current.
- Low Offset Voltage: The amplifier features a low input offset voltage of 300 µV Max at 25°C and a low offset voltage temperature coefficient of 2.5 µV/°C Max.
- High Gain: It offers high gain with minimum values of 1.2 V/µV (RL = 2 kΩ) and 0.5 V/µV (RL = 600 Ω).
- Low Supply Current: The LT1014DDW has a low supply current of 2.2 mA Max at 25°C.
- Low Noise: The amplifier exhibits low peak-to-peak noise voltage of 0.55 µV Typ and low current noise of 0.07 pA/√Hz Typ.
- Dual and Single Supply Capability: It can be operated with both dual ±15-V and single 5-V power supplies.
- No Crossover Distortion: The design eliminates crossover distortion, ensuring smooth operation.
Applications
The LT1014DDW is suitable for a variety of applications that require high precision, low noise, and low power consumption. These include:
- Instrumentation and Measurement: Due to its high accuracy and low noise, it is ideal for precision measurement instruments.
- Medical Devices: Its low noise and high gain make it suitable for medical equipment requiring precise signal amplification.
- Aerospace and Military: The LT1014DDW is available in military-grade versions, making it suitable for aerospace and military applications where reliability and precision are critical.
- Industrial Automation: It can be used in various industrial automation systems where precise signal processing is necessary.
Q & A
- What is the package type of the LT1014DDW?
The LT1014DDW is packaged in a 16-pin SOIC (DW) package.
- What is the operating temperature range of the LT1014DDW?
The operating temperature range is from 0°C to 70°C.
- What is the input offset voltage of the LT1014DDW?
The input offset voltage is 300 µV Max at 25°C.
- Can the LT1014DDW operate on a single supply voltage?
Yes, it can operate with a single supply voltage ranging from 5V to 44V.
- What is the typical slew rate of the LT1014DDW?
The typical slew rate is 0.4 V/µs.
- What is the maximum supply current of the LT1014DDW?
The maximum supply current is 2.2 mA at 25°C.
- Does the LT1014DDW have crossover distortion?
No, the design eliminates crossover distortion.
- What are the typical noise characteristics of the LT1014DDW?
The LT1014DDW has a low peak-to-peak noise voltage of 0.55 µV Typ and low current noise of 0.07 pA/√Hz Typ.
- What are some common applications of the LT1014DDW?
Common applications include instrumentation and measurement, medical devices, aerospace and military, and industrial automation.
- Is the LT1014DDW available in military-grade versions?
Yes, the LT1014DDW is available in military-grade versions with extended temperature ranges.
