Overview
The LSF0102QDCURQ1 is an automotive-grade, dual-channel bidirectional multi-voltage level translator produced by Texas Instruments. This device is designed to translate voltage levels between different supply voltages without the need for a directional pin, making it highly versatile for various automotive and industrial applications. It supports a wide range of supply voltages, ensuring compatibility with diverse system designs.
Key Specifications
| Parameter | Value |
|---|---|

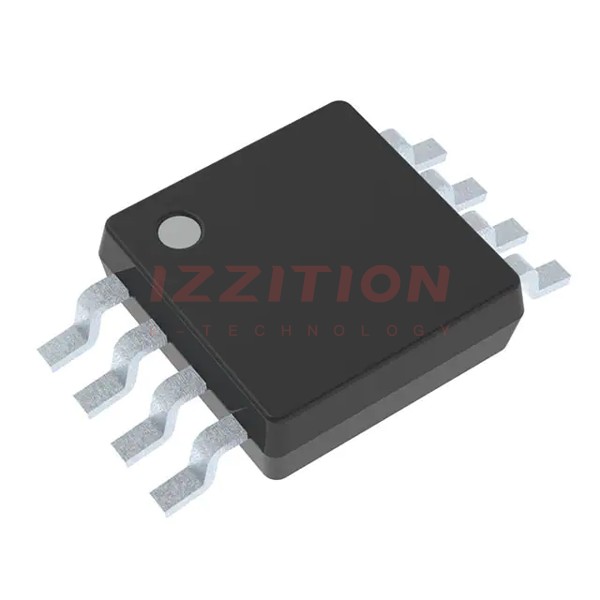

| Package Type | VSSOP-8-0.5mm (R-PDSO-G8) |
| Supply Voltage Range | 1.8V to 5.5V |
| Translation Voltage Range | 950mV to 4.5V |
| Channels | Dual-channel |
| Directionality | Bidirectional |
| Certification | AEC-Q100 qualified |
| RoHS Compliance | Yes |
Key Features
- Bidirectional voltage translation without the need for a directional pin
- Supports a wide range of supply voltages (1.8V to 5.5V)
- Dual-channel operation for simultaneous translation of two signals
- AEC-Q100 qualified for automotive applications
- Compact VSSOP-8-0.5mm package
Applications
The LSF0102QDCURQ1 is suitable for a variety of applications, particularly in the automotive sector. It can be used in systems requiring voltage level translation between different domains, such as:
- Automotive infotainment systems
- Advanced driver-assistance systems (ADAS)
- Automotive control units
- Industrial control systems
Q & A
- What is the primary function of the LSF0102QDCURQ1? The primary function is to translate voltage levels between different supply voltages in a bidirectional manner without the need for a directional pin.
- What is the supply voltage range of the LSF0102QDCURQ1? The supply voltage range is from 1.8V to 5.5V.
- How many channels does the LSF0102QDCURQ1 support? It supports dual-channel operation.
- Is the LSF0102QDCURQ1 AEC-Q100 qualified? Yes, it is AEC-Q100 qualified for automotive applications.
- What is the package type of the LSF0102QDCURQ1? The package type is VSSOP-8-0.5mm (R-PDSO-G8).
- Is the LSF0102QDCURQ1 RoHS compliant? Yes, it is RoHS compliant.
- What are some common applications of the LSF0102QDCURQ1? Common applications include automotive infotainment systems, ADAS, automotive control units, and industrial control systems.
- Why is the LSF0102QDCURQ1 useful in automotive systems? It is useful because it can translate voltage levels between different domains without the need for a directional pin, making it versatile for various automotive applications.
- Can the LSF0102QDCURQ1 be used in non-automotive applications? Yes, it can be used in industrial control systems and other applications requiring voltage level translation.
- Where can I find detailed specifications and datasheets for the LSF0102QDCURQ1? Detailed specifications and datasheets can be found on the Texas Instruments website and other electronic component distributors like Mouser and LCSC.
