Overview

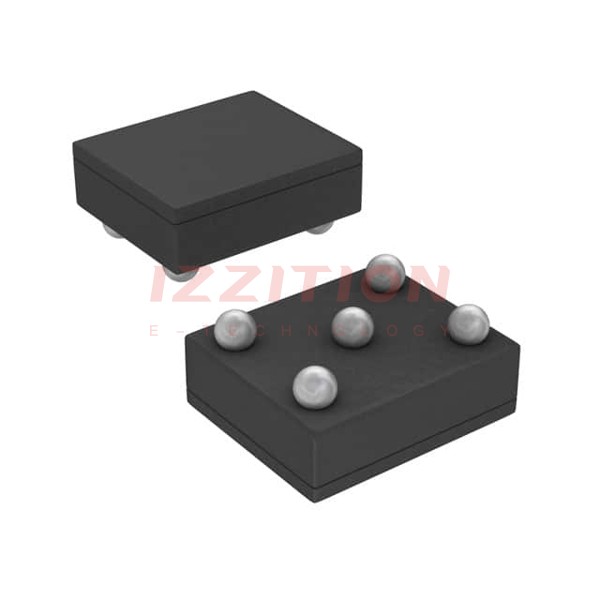

The LP2985AITPX-2.5/NOPB is a fixed-output, low-dropout (LDO) voltage regulator manufactured by Texas Instruments. This component is designed to deliver a stable 2.5V output with a maximum current of 150mA. It is housed in a 5-UFBGA (DSBGA) package, making it suitable for space-constrained applications. The LP2985AITPX-2.5/NOPB is widely used in portable electronics, IoT devices, and other low-power systems where efficient voltage regulation is critical. Its ultra-low dropout voltage and low noise performance make it a competitive choice in its category.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Output Voltage | 2.5 | V | Fixed |
| Output Current | 150 | mA | Maximum |
| Input Voltage | Up to 16 | V | Maximum |
| Dropout Voltage | 0.28 | V | @ 150mA |
| Operating Temperature | -40 to 125 | °C | |
| Package | 5-UFBGA, DSBGA |
Key Features
- Ultra-low dropout voltage for efficient operation.
- Low noise output, ideal for sensitive applications.
- Fixed 2.5V output for simplified design.
- Compact 5-UFBGA package for space-saving layouts.
- Wide input voltage range up to 16V.
Applications
The LP2985AITPX-2.5/NOPB is commonly used in portable electronics such as smartphones, tablets, and wearable devices. It is also suitable for IoT applications, where low power consumption and small form factors are essential. Additionally, it finds use in industrial control systems and automotive electronics, where reliable voltage regulation is critical.
Q & A
1. What is the output voltage of the LP2985AITPX-2.5/NOPB?
The output voltage is fixed at 2.5V.
2. What is the maximum output current?
The maximum output current is 150mA.
3. What is the dropout voltage at 150mA?
The dropout voltage is 0.28V at 150mA.
4. What is the input voltage range?
The input voltage can range up to 16V.
5. What is the operating temperature range?
The operating temperature range is -40°C to 125°C.
6. What package does this component use?
It uses a 5-UFBGA (DSBGA) package.
7. Is this component suitable for portable electronics?
Yes, its low dropout voltage and compact size make it ideal for portable electronics.
8. Can it be used in automotive applications?
Yes, it is suitable for automotive electronics due to its robust design.
9. Does it have low noise performance?
Yes, it features low noise output, making it suitable for sensitive applications.
10. Is this component RoHS compliant?
Yes, it is RoHS compliant.
