Overview

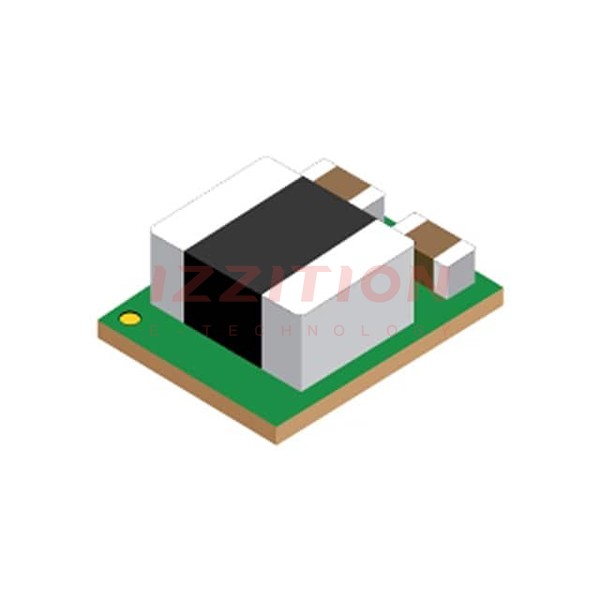

The LMZM23601V5SILR, produced by Texas Instruments, is an integrated-inductor power module designed specifically for space-constrained industrial applications. This device offers a wide operating input voltage range of 4 V to 36 V and can deliver up to 1 A of output current. It is available in fixed output voltage options of 5 V and 3.3 V, as well as an adjustable output voltage option supporting a range of 1.2 V to 15 V. The module is highly efficient, requiring only two external components for 5-V or 3.3-V output designs, making it ideal for applications where board space is limited.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Input Voltage Range | 4 to 36 | V |
| Output Voltage Options | Fixed: 3.3 V, 5 V; Adjustable: 1.2 V to 15 V | V |
| Output Current | Up to 1 A | A |
| No-Load Supply Current | 28 µA | µA |
| Shutdown Current | 2 µA | µA |
| Operating Temperature Range | -40 to 125 | °C |
| Package Dimensions | 3.8 mm × 3 mm × 1.6 mm | mm |
| Package Type | MicroSiP™ (10-pin SIL) |
Key Features
- Wide operating input voltage range of 4 V to 36 V
- Output voltage options: fixed 3.3 V and 5 V, and adjustable 1.2 V to 15 V
- Up to 1 A output current
- Only input and output capacitors needed for 5-V and 3.3-V output designs
- Compact solution size with single-sided layout (27 mm²)
- Low no-load supply current of 28 µA and shutdown current of 2 µA
- Power-good flag for system status indication
- External frequency synchronization and MODE selection pin for PWM or PFM mode
- Built-in control loop compensation, soft start, current limit, and UVLO
- Miniature 3.8-mm × 3-mm × 1.6-mm package
Applications
- Sensor transmitters
- Test and measurement equipment
- Grid infrastructure
- Space-constrained industrial applications
Q & A
- What is the input voltage range of the LMZM23601V5SILR?
The input voltage range is from 4 V to 36 V.
- What are the available output voltage options for the LMZM23601V5SILR?
The device offers fixed output voltages of 3.3 V and 5 V, as well as an adjustable output voltage range of 1.2 V to 15 V.
- How much output current can the LMZM23601V5SILR deliver?
The device can deliver up to 1 A of output current.
- What is the no-load supply current of the LMZM23601V5SILR?
The no-load supply current is 28 µA.
- Does the LMZM23601V5SILR require additional external components for operation?
No, it requires only input and output capacitors for 5-V and 3.3-V output designs.
- What is the operating temperature range of the LMZM23601V5SILR?
The operating temperature range is from -40°C to 125°C.
- What package type is the LMZM23601V5SILR available in?
The device is available in a MicroSiP™ (10-pin SIL) package.
- Does the LMZM23601V5SILR support external frequency synchronization?
- What is the purpose of the Power-Good flag in the LMZM23601V5SILR?
The Power-Good flag provides a true indication of the system status, eliminating the need for an additional supervisory component.
- Can the LMZM23601V5SILR be used in space-constrained applications?
