Overview

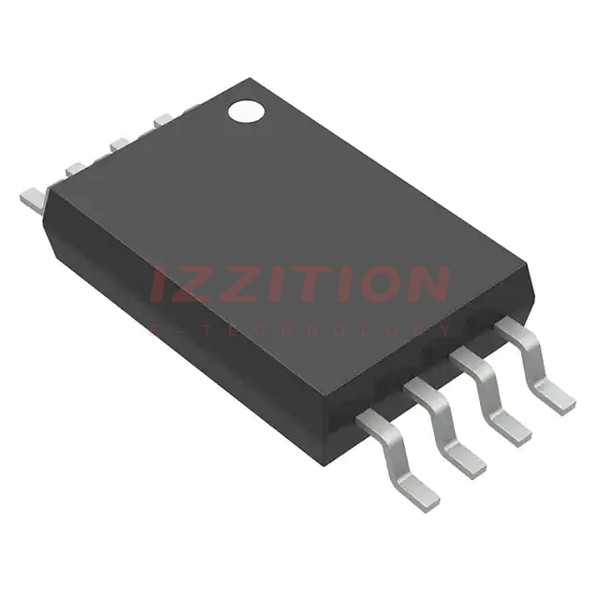

The LMV358IPWR is a dual operational amplifier (op-amp) produced by Texas Instruments. This model is part of the LMV358 series, known for its low-voltage operation and low power consumption, making it ideal for battery-powered and portable devices. The LMV358IPWR is designed to provide high performance in a compact TSSOP package, targeting applications in consumer electronics, industrial automation, and automotive systems. Its unique selling points include wide supply voltage range, low input bias current, and rail-to-rail output swing, which enhance its versatility and efficiency in various circuit designs.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Supply Voltage Range | 2.7 to 5.5 | V | Single or dual supply |
| Input Bias Current | 1 | pA | Typical |
| Gain Bandwidth Product | 1 | MHz | |
| Slew Rate | 0.6 | V/µs | |
| Operating Temperature Range | -40 to 125 | °C | |
| Package Type | TSSOP | 8-pin |
Key Features
- Low power consumption extends battery life in portable applications.
- Rail-to-rail output swing maximizes the dynamic range in low-voltage applications.
- Wide supply voltage range allows for flexible power supply design.
- Low input bias current minimizes errors in high-impedance circuits.
Applications
The LMV358IPWR is extensively used in various fields due to its robust performance and low power characteristics. In consumer electronics, it is employed in audio processing and sensor signal conditioning. In industrial settings, it is utilized for control systems and process monitoring. Automotive applications include vehicle control systems and sensor interfaces, where reliability and efficiency are crucial.
Q & A
What is the operating voltage range of the LMV358IPWR?
The LMV358IPWR operates from a supply voltage range of 2.7V to 5.5V.
Can the LMV358IPWR be used in dual supply configurations?
Yes, it can be configured for both single and dual supply operations.
What is the typical input bias current of the LMV358IPWR?
The typical input bias current is 1 pA.
What package does the LMV358IPWR come in?
It comes in an 8-pin TSSOP package.
Is the LMV358IPWR suitable for battery-powered devices?
Yes, its low power consumption makes it ideal for battery-powered applications.
What is the gain bandwidth product of the LMV358IPWR?
The gain bandwidth product is 1 MHz.
What is the slew rate of the LMV358IPWR?
The slew rate is 0.6 V/µs.
What is the operating temperature range for the LMV358IPWR?
It operates from -40°C to 125°C.
Can the LMV358IPWR handle rail-to-rail output?
Yes, it features rail-to-rail output swing.
What are some typical applications of the LMV358IPWR?
Typical applications include audio processing, sensor signal conditioning, control systems, and automotive sensor interfaces.
