Overview
The Texas Instruments LMV344IDR is a quad operational amplifier designed for high-performance applications. This device features a rail-to-rail output swing, making it suitable for a wide range of analog signal processing tasks. With its high output current capability of 75 mA and a bandwidth of 1 MHz, the LMV344IDR is ideal for applications requiring both high current drive and precision signal handling.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Channels | 4 |
| Supply Voltage | Up to 5.5 V |
| Bandwidth | 1 MHz |
| Output Current | 75 mA |
| Input Bias Current | 1 pA (Typical) |
| Input Offset Voltage | 0.25 mV (Typical) |
| Supply Current | 100 μA (Typical) |

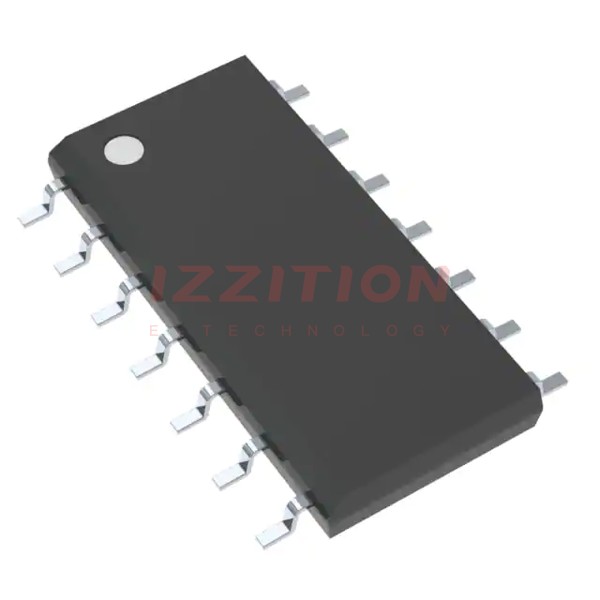

| Package Type | SOIC-14 |
Key Features
- Rail-to-rail output swing for maximum signal range
- High output current of 75 mA for driving heavy loads
- Low input bias current of 1 pA for minimal signal distortion
- Low input offset voltage of 0.25 mV for high precision
- Low supply current of 100 μA for power-efficient operation
Applications
- Analog signal processing and conditioning
- Audio and video amplification
- Industrial control systems
- Medical devices requiring high precision and low noise
- Automotive electronics where reliability and performance are critical
Q & A
- What is the maximum supply voltage for the LMV344IDR?
The maximum supply voltage for the LMV344IDR is 5.5 V. - How many channels does the LMV344IDR have?
The LMV344IDR has 4 channels. - What is the bandwidth of the LMV344IDR?
The bandwidth of the LMV344IDR is 1 MHz. - What is the typical input bias current of the LMV344IDR?
The typical input bias current of the LMV344IDR is 1 pA. - What is the typical input offset voltage of the LMV344IDR?
The typical input offset voltage of the LMV344IDR is 0.25 mV. - What is the package type of the LMV344IDR?
The package type of the LMV344IDR is SOIC-14. - What is the maximum output current of the LMV344IDR?
The maximum output current of the LMV344IDR is 75 mA. - Is the LMV344IDR suitable for high-current drive applications?
Yes, the LMV344IDR is suitable for high-current drive applications due to its high output current capability. - What are some common applications of the LMV344IDR?
The LMV344IDR is commonly used in analog signal processing, audio and video amplification, industrial control systems, medical devices, and automotive electronics. - Where can I find more detailed specifications and datasheets for the LMV344IDR?
You can find more detailed specifications and datasheets for the LMV344IDR on the Texas Instruments website or through authorized distributors like Digi-Key, Mouser, and LCSC.
