Overview
The LMV341QDCKRQ1 is a general-purpose operational amplifier (op-amp) manufactured by Texas Instruments. Designed for a wide range of applications, this op-amp is known for its ability to amplify the difference between two voltages efficiently. It is particularly suited for automotive and industrial applications due to its robust performance and reliability. The LMV341QDCKRQ1 is a cost-effective solution for designers seeking high-quality amplification in their circuits.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Supply Voltage | 1.25 | V | Minimum operating voltage |
| Operating Temperature | -40 to 125 | °C | Extended range for automotive use |
| Gain Bandwidth Product | 1 | MHz | Typical value |
| Output Current | 75 | mA | High output current capability |

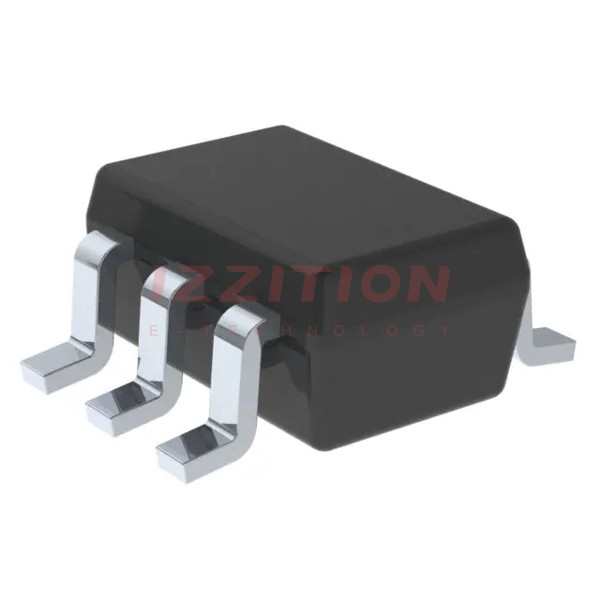

| Package | SC-70 | - | Compact package for space-constrained applications |
Key Features
- High output current of 75 mA, enabling driving of heavy loads.
- Wide supply voltage range from 1.25V to 5.5V, suitable for various applications.
- Extended operating temperature range of -40°C to 125°C, ideal for automotive environments.
- Low power consumption, making it energy-efficient.
- Compact SC-70 package, saving board space in designs.
Applications
The LMV341QDCKRQ1 is widely used in automotive electronics, including sensor signal conditioning and power management systems. In industrial applications, it is employed in control systems and signal processing circuits. Its high reliability and performance also make it suitable for consumer electronics, such as portable devices and audio amplifiers.
Q & A
1. What is the typical gain bandwidth product of the LMV341QDCKRQ1?
The typical gain bandwidth product is 1 MHz.
2. What is the operating temperature range of this op-amp?
It operates from -40°C to 125°C.
3. Can the LMV341QDCKRQ1 be used in automotive applications?
Yes, it is designed for automotive environments.
4. What is the maximum output current of the LMV341QDCKRQ1?
The maximum output current is 75 mA.
5. What package does the LMV341QDCKRQ1 come in?
It is available in an SC-70 package.
6. What is the minimum supply voltage for this op-amp?
The minimum supply voltage is 1.25V.
7. Is the LMV341QDCKRQ1 suitable for low-power applications?
Yes, it has low power consumption.
8. What are the key features of the LMV341QDCKRQ1?
High output current, wide supply voltage range, and extended temperature range.
9. Can this op-amp be used in industrial control systems?
Yes, it is suitable for industrial applications.
10. What is the typical application of the LMV341QDCKRQ1 in consumer electronics?
It is commonly used in portable devices and audio amplifiers.
