Overview

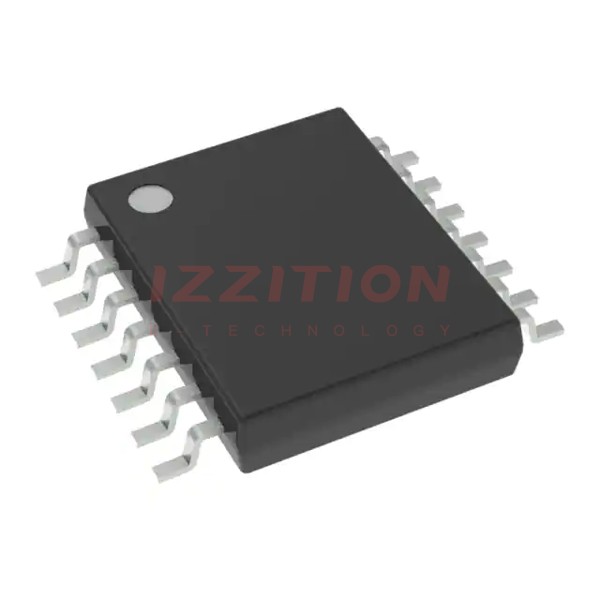

The LMV324QPW is a quad low-voltage operational amplifier produced by Texas Instruments. This component is part of the LMV324 series, known for its rail-to-rail output and low power consumption, making it suitable for a wide range of applications. The LMV324QPW is packaged in a 14-pin TSSOP (Thin Shrink Small Outline Package) and is RoHS compliant, ensuring environmental sustainability.
Key Specifications
| Parameter | Value |
|---|---|
| Op Amp Type | Low Voltage |
| No. of Amplifiers | 4 |
| Slew Rate | 1 V/μs |
| Supply Voltage Range | 2.7 V to 5.5 V |
| Amplifier Case Style | TSSOP-14 |
| No. of Pins | 14 |
| Bandwidth | 1 MHz |
| Operating Temperature Min | -40°C |
| RoHS Compliant | Yes |
Key Features
- Rail-to-rail output, allowing the output voltage to swing from the negative to the positive supply rail.
- Low power consumption, making it energy-efficient.
- High slew rate of 1 V/μs, enabling fast response times.
- Wide supply voltage range of 2.7 V to 5.5 V, providing flexibility in design.
- Compact TSSOP-14 package, suitable for space-constrained applications.
- Low input offset voltage and high gain-bandwidth product.
Applications
The LMV324QPW is versatile and can be used in various applications, including:
- Audio and video signal processing.
- Medical devices requiring low power and high precision.
- Industrial control systems and automation.
- Portable electronics and battery-powered devices.
- Sensor signal conditioning and data acquisition systems.
Q & A
- What is the package type of the LMV324QPW?
The LMV324QPW is packaged in a 14-pin TSSOP (Thin Shrink Small Outline Package). - What is the supply voltage range for the LMV324QPW?
The supply voltage range is from 2.7 V to 5.5 V. - How many operational amplifiers are included in the LMV324QPW?
The LMV324QPW includes four operational amplifiers. - What is the slew rate of the LMV324QPW?
The slew rate is 1 V/μs. - Is the LMV324QPW RoHS compliant?
Yes, the LMV324QPW is RoHS compliant. - What is the bandwidth of the LMV324QPW?
The bandwidth is 1 MHz. - What are some common applications for the LMV324QPW?
Common applications include audio and video signal processing, medical devices, industrial control systems, portable electronics, and sensor signal conditioning. - What is the minimum operating temperature for the LMV324QPW?
The minimum operating temperature is -40°C. - Is the LMV324QPW suitable for battery-powered devices?
Yes, due to its low power consumption, it is suitable for battery-powered devices. - Where can I find detailed specifications for the LMV324QPW?
Detailed specifications can be found in the datasheet available on Texas Instruments' official website or through distributors like Digi-Key and Mouser.
