Overview

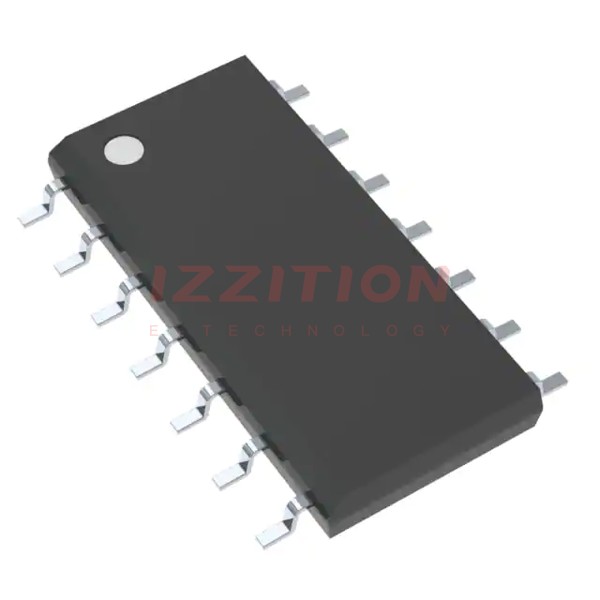

The LMC660AIMX/NOPB is a high-performance CMOS quad operational amplifier produced by Texas Instruments. Designed for precision applications, this component is housed in a SOP14 package, making it suitable for a wide range of electronic designs. Its low power consumption and rail-to-rail output capability make it ideal for battery-powered devices and portable electronics. The LMC660AIMX/NOPB is targeted at engineers and designers seeking reliable amplification solutions in industrial, medical, and consumer electronics applications.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Supply Voltage | 2.0 - 15.5 | V | |
| Input Offset Voltage | 5 | mV | Max |
| Gain Bandwidth Product | 1.4 | MHz | |
| Slew Rate | 1.5 | V/µs | |
| Input Bias Current | 200 | fA | |
| Operating Temperature | -40 to +85 | °C | |
| Package | SOP14 |
Key Features
- Low power consumption for extended battery life.
- Rail-to-rail output swing for maximum dynamic range.
- High input impedance and low input bias current.
- Wide supply voltage range for versatile applications.
- CMOS technology ensures low noise and high precision.
Applications
The LMC660AIMX/NOPB is widely used in various applications, including signal conditioning, sensor amplification, and active filtering. Its precision and low power characteristics make it suitable for medical devices such as ECG monitors and portable diagnostic equipment. In industrial settings, it is used in process control systems and data acquisition modules. Additionally, it is employed in consumer electronics for audio processing and portable gadgets.
Q & A
What is the supply voltage range for the LMC660AIMX/NOPB?
The supply voltage range is from 2.0V to 15.5V.
What is the typical input offset voltage?
The maximum input offset voltage is 5mV.
What is the gain bandwidth product of this amplifier?
The gain bandwidth product is 1.4MHz.
Is the LMC660AIMX/NOPB suitable for battery-powered devices?
Yes, its low power consumption makes it ideal for battery-powered applications.
What is the operating temperature range?
It operates from -40°C to +85°C.
What package does the LMC660AIMX/NOPB come in?
It is available in a SOP14 package.
Can this amplifier handle rail-to-rail output?
Yes, it supports rail-to-rail output swing.
What is the input bias current?
The input bias current is typically 200fA.
Is the LMC660AIMX/NOPB suitable for audio applications?
Yes, its low noise and high precision make it suitable for audio processing.
What are the main advantages of using CMOS technology in this amplifier?
CMOS technology ensures low noise, high precision, and low power consumption.
