Overview

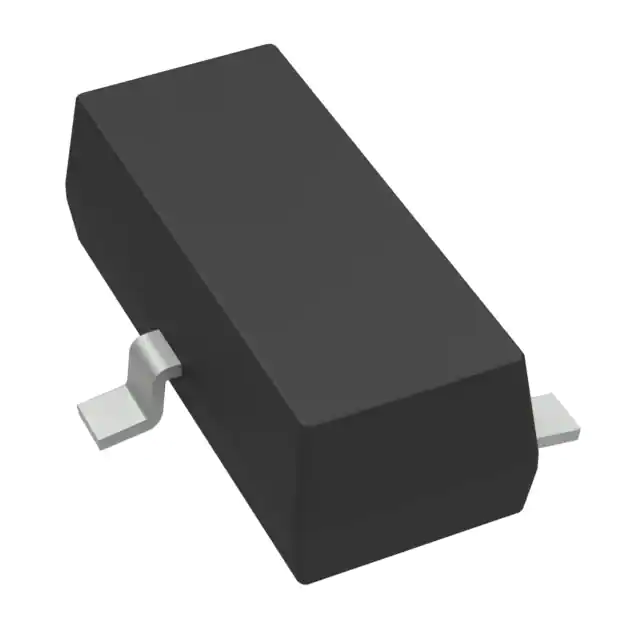

The LM45BIM3X/NOPB temperature sensor, manufactured by Texas Instruments, is a compact and highly accurate analog temperature sensor designed for various applications. It offers a combination of accuracy, efficiency, and ease of integration, making it a valuable tool for temperature sensing requirements. The sensor features a wide operating range, low power consumption, and inherent calibration, ensuring reliable performance in a cost-effective package.
Key Specifications
| Parameter | Value |
|---|---|
| Local sensor accuracy (max) | ±2°C |
| Operating temperature range (°C) | -20 to 100 |
| Supply voltage (min) (V) | 4 |
| Supply voltage (max) (V) | 10 |
| Supply current (max) (µA) | 120 |
| Interface type | Analog output |
| Sensor gain (mV/°C) | 10 |
| Rating | Catalog |
| Features | UL recognized |
| Package/Case | SOT-23-3 |
Key Features
- Compact Design for Space-Constrained Applications
- Precise Temperature Measurement Provided
- High Accuracy and Reliability Assured
Applications
The LM45BIM3X/NOPB is suitable for a wide range of applications where precise temperature measurement is critical. These include industrial control systems, medical devices, automotive systems, consumer electronics, and any environment where space is limited and high accuracy is required.
Q & A
- What is the operating temperature range of the LM45BIM3X/NOPB?
The operating temperature range is -20°C to 100°C. - What is the supply voltage range for the LM45BIM3X/NOPB?
The supply voltage range is from 4V to 10V. - What is the maximum supply current of the LM45BIM3X/NOPB?
The maximum supply current is 120 µA. - What is the sensor gain of the LM45BIM3X/NOPB?
The sensor gain is 10 mV/°C. - What is the package type of the LM45BIM3X/NOPB?
The package type is SOT-23-3. - Is the LM45BIM3X/NOPB RoHS compliant?
Yes, the LM45BIM3X/NOPB is RoHS compliant. - What is the local sensor accuracy of the LM45BIM3X/NOPB?
The local sensor accuracy is ±2°C. - Does the LM45BIM3X/NOPB require external calibration?
No, the LM45BIM3X/NOPB does not require external calibration as it is inherently calibrated. - What are some typical applications of the LM45BIM3X/NOPB?
Typical applications include industrial control systems, medical devices, automotive systems, and consumer electronics. - What is the interface type of the LM45BIM3X/NOPB?
The interface type is analog output.
