Overview

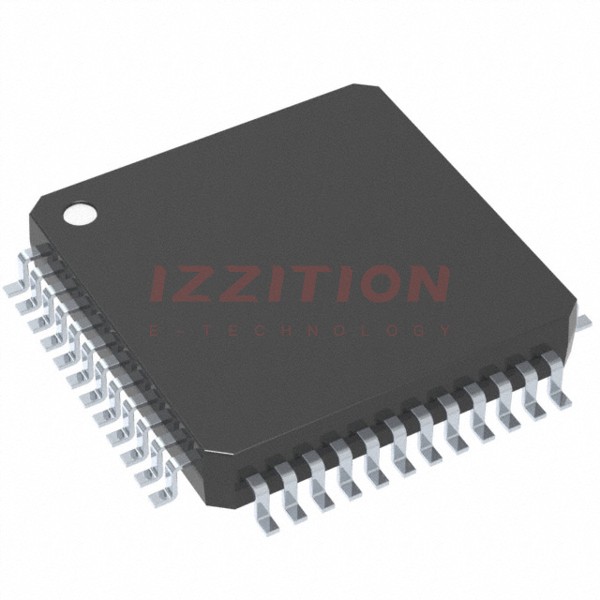

The Texas Instruments LM3S800-IQN50-C2 is a microcontroller from the Stellaris family, based on the ARM Cortex-M3 core. This device operates at a maximum frequency of 50 MHz and is designed for a wide range of applications requiring high performance and low power consumption. It features 64 kB of flash memory and 8 kB of SRAM, making it suitable for various embedded systems.
Key Specifications
| Parameter | Value |
|---|---|
| Core Processor | ARM Cortex-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | Up to 50 MHz |
| Flash Memory | 64 kB |
| SRAM | 8 kB |
| Connectivity | I2C, Microwire, SPI, SSI, UART/USART |
Key Features
- ARM Cortex-M3 core for high performance and efficiency
- Up to 50 MHz operating frequency
- 64 kB of flash memory and 8 kB of SRAM
- Multiple communication interfaces: I2C, Microwire, SPI, SSI, UART/USART
- Low power consumption, suitable for battery-powered devices
Applications
The LM3S800-IQN50-C2 microcontroller is versatile and can be used in a variety of applications, including:
- Industrial automation and control systems
- Medical devices and diagnostic equipment
- Consumer electronics such as smart home devices and appliances
- Automotive systems and infotainment
- Internet of Things (IoT) devices and smart sensors
Q & A
- What is the core processor of the LM3S800-IQN50-C2?
The core processor is the ARM Cortex-M3. - What is the maximum operating frequency of the LM3S800-IQN50-C2?
The maximum operating frequency is up to 50 MHz. - How much flash and SRAM memory does the LM3S800-IQN50-C2 have?
The device has 64 kB of flash memory and 8 kB of SRAM. - What communication interfaces are available on the LM3S800-IQN50-C2?
The device supports I2C, Microwire, SPI, SSI, and UART/USART interfaces. - Is the LM3S800-IQN50-C2 suitable for low power applications?
Yes, it is designed for low power consumption, making it suitable for battery-powered devices. - What are some common applications of the LM3S800-IQN50-C2?
Common applications include industrial automation, medical devices, consumer electronics, automotive systems, and IoT devices. - Where can I find detailed specifications for the LM3S800-IQN50-C2?
Detailed specifications can be found on the Texas Instruments official website and through distributors like Digi-Key. - How many pieces of the LM3S800-IQN50-C2 are typically available in stock?
Availability can vary, but as of recent data, there were 64,980 pieces available in stock at some distributors. - What is the Stellaris family of microcontrollers known for?
The Stellaris family is known for its high performance, low power consumption, and extensive peripheral set, making it suitable for a wide range of embedded systems applications. - Can the LM3S800-IQN50-C2 be used in automotive systems?
Yes, it can be used in automotive systems due to its robust features and reliability.
