LM334Z/NOPB
  • Share:

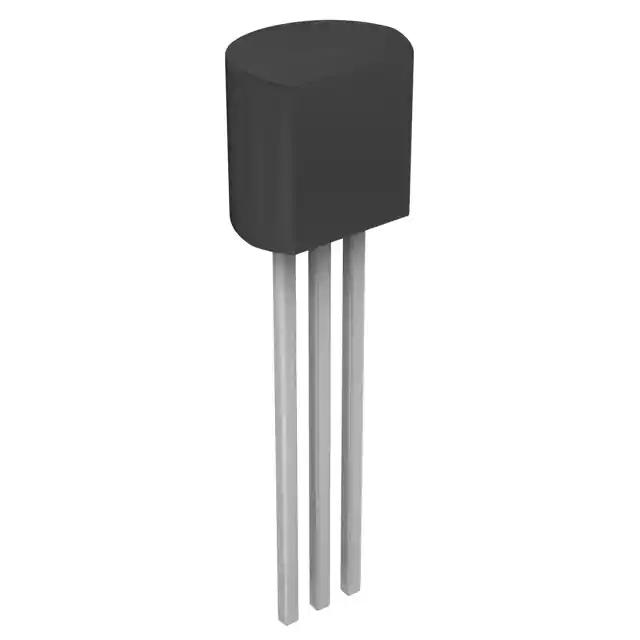

Texas Instruments LM334Z/NOPB

Manufacturer No:
LM334Z/NOPB
Manufacturer:
Texas Instruments
Package:
Bulk
Description:
IC CURRENT SOURCE 3% TO92-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The LM334Z/NOPB is a 3-terminal adjustable current source produced by Texas Instruments. This device is part of the LM334 series, known for its versatility and wide range of applications. It operates from a minimum input voltage of 1V to a maximum of 40V, making it suitable for various power supply configurations. The LM334Z/NOPB is available in a TO-92 package and is RoHS compliant, ensuring environmental sustainability.

Key Specifications

Parameter Value Units
Max Input Voltage 40 V
Min Input Voltage 1 V
Max Operating Temperature 70 °C
Min Operating Temperature 0 °C
Max Power Dissipation 400 mW
Forward Current 10 mA
Accuracy ±3%
Package Type TO-92-3
Number of Pins 3
Mount Type Through Hole
RoHS Compliant Yes

Key Features

  • Operates from 1V to 40V, providing a wide dynamic voltage range.
  • Programmable from 1μA to 10mA with a single external resistor.
  • True 2-terminal operation with no separate power supply connections required.
  • Excellent current regulation with 0.02%/V.
  • Available as a fully specified temperature sensor with ±3% initial accuracy.
  • Reverse applied voltages of up to 20V draw only a few dozen microamperes of current, allowing it to act as both a rectifier and current source in AC applications.

Applications

  • Bias networks: The LM334Z/NOPB can be used to generate stable current for biasing circuits.
  • Surge protection: Its ability to handle reverse voltages makes it suitable for surge protection applications.
  • Low power reference: It can serve as a low power current reference in various circuits.
  • Ramp generation: The device can be used to generate ramps for timing and control applications.
  • LED driver: It can drive LEDs with a stable current, ensuring consistent brightness.
  • Temperature sensing: The LM334 series includes devices that can act as true temperature sensors.

Q & A

  1. What is the operating voltage range of the LM334Z/NOPB?

    The LM334Z/NOPB operates from 1V to 40V.

  2. What is the maximum operating temperature for the LM334Z/NOPB?

    The maximum operating temperature is 70°C.

  3. How is the current set in the LM334Z/NOPB?

    The current is set using a single external resistor.

  4. Is the LM334Z/NOPB RoHS compliant?

    Yes, the LM334Z/NOPB is RoHS compliant.

  5. What is the maximum power dissipation of the LM334Z/NOPB?

    The maximum power dissipation is 400 mW.

  6. Can the LM334Z/NOPB handle reverse voltages?

    Yes, it can handle reverse voltages of up to 20V.

  7. What are some common applications of the LM334Z/NOPB?

    Common applications include bias networks, surge protection, low power reference, ramp generation, LED drivers, and temperature sensing.

  8. What is the accuracy of the current source in the LM334Z/NOPB?

    The initial current accuracy is ±3%.

  9. In what package is the LM334Z/NOPB available?

    The LM334Z/NOPB is available in a TO-92 package.

  10. Does the LM334Z/NOPB require a separate power supply connection?

    No, it does not require a separate power supply connection.

Product Attributes

Function:Current Source
Sensing Method:-
Accuracy:±6%
Voltage - Input:1V ~ 40V
Current - Output:Adjustable
Operating Temperature:0°C ~ 70°C
Mounting Type:Through Hole
Package / Case:TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package:TO-92-3
0 Remaining View Similar

In Stock

$1.33
407

Please send RFQ , we will respond immediately.
