Overview

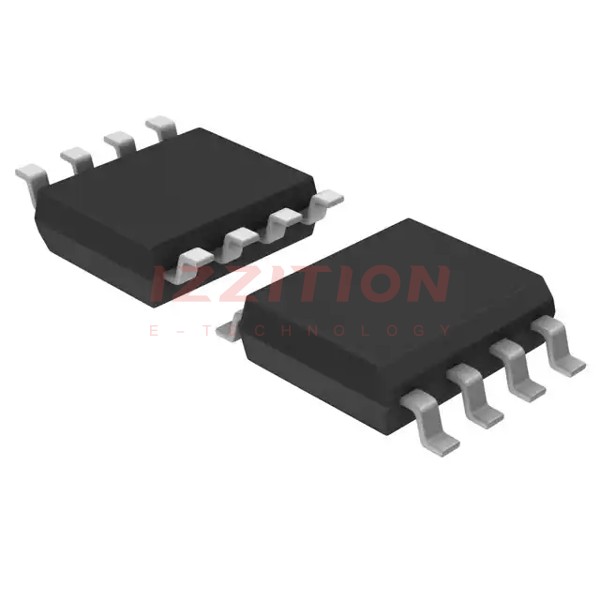

The LM2903PSRG4 is a dual differential comparator produced by Texas Instruments. It is part of the LM2903 series, which is widely used in industrial, automotive, and consumer electronics applications. This component is designed to operate over a wide range of supply voltages and is optimized for low power consumption, making it suitable for battery-powered devices. The LM2903PSRG4 is housed in an SOIC-8 package, ensuring compactness and ease of integration into various circuit designs. Its robust performance and reliability make it a preferred choice for precision comparison tasks.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Supply Voltage Range | 2 to 36 | V | Single or dual supply |
| Input Offset Voltage | ±1 | mV | Typical |
| Input Bias Current | 25 | nA | Typical |
| Response Time | 1.3 | µs | Typical |
| Operating Temperature Range | -40 to 125 | °C | |
| Package | SOIC-8 | ||
| Output Type | Open Collector |
Key Features
- Wide supply voltage range (2V to 36V) for versatile applications.
- Low input bias current (25nA typical) for precision.
- Open collector output for flexible interfacing.
- High-speed response time (1.3µs typical) for quick decision-making.
- Robust performance over a wide temperature range (-40°C to 125°C).
Applications
The LM2903PSRG4 is commonly used in various applications, including:
- Industrial Automation: Precision control systems, sensor interfaces, and signal conditioning.
- Automotive Electronics: Battery management systems, motor control, and safety systems.
- Consumer Electronics: Power management, audio processing, and portable devices.
- Telecommunications: Signal detection and level shifting.
Q & A
1. What is the supply voltage range of the LM2903PSRG4?
The supply voltage range is from 2V to 36V, allowing it to operate in both single and dual supply configurations.
2. What is the typical input offset voltage?
The typical input offset voltage is ±1mV.
3. What is the input bias current of the LM2903PSRG4?
The typical input bias current is 25nA.
4. What is the response time of the comparator?
The typical response time is 1.3µs.
5. What is the operating temperature range?
The operating temperature range is from -40°C to 125°C.
6. What package does the LM2903PSRG4 come in?
It comes in an SOIC-8 package.
7. What type of output does the LM2903PSRG4 have?
It has an open collector output.
8. Is the LM2903PSRG4 suitable for battery-powered devices?
Yes, its low power consumption makes it ideal for battery-powered devices.
9. Can the LM2903PSRG4 be used in automotive applications?
Yes, it is suitable for automotive applications such as battery management and motor control.
10. What are some typical applications of the LM2903PSRG4?
Typical applications include industrial automation, automotive electronics, consumer electronics, and telecommunications.
