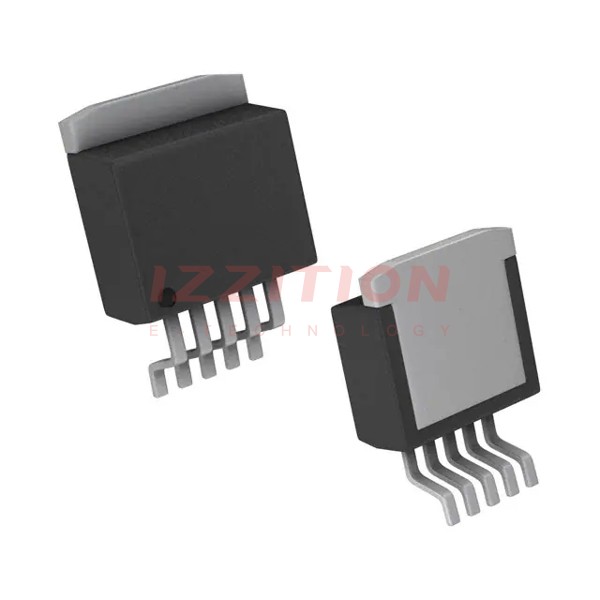

Texas Instruments LM2585S-ADJ

Manufacturer No:
LM2585S-ADJ
Manufacturer:
Texas Instruments
Package:
Bulk
Description:
IC REG MULT CONFG ADJ 3A TO263
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The LM2585S-ADJ, manufactured by Texas Instruments, is a versatile switching voltage regulator designed for a wide range of power management applications. This model belongs to the SIMPLE SWITCHER® series, known for its ease of use and high efficiency. It is particularly suitable for applications requiring step-up, flyback, or forward converter topologies. The LM2585S-ADJ is housed in a TO-263-5 package, making it ideal for surface-mount designs. Its adjustable output voltage and robust performance make it a preferred choice for industrial, automotive, and consumer electronics applications.

Key Specifications

ParameterValueUnitNotes
ManufacturerTexas Instruments--
Product CategorySwitching Voltage Regulators--
TopologyFlyback--
Output Voltage1.23 V to 60 VVAdjustable
Output Current3 AASwitch
Input Voltage (Min)4 VV-
Input Voltage (Max)40 VV-
Switching Frequency100 kHzkHz-
Operating Temperature-40°C to +125°C°C-
PackageTO-263-5--

Key Features

  • Adjustable output voltage for versatile applications.
  • High efficiency with a switching frequency of 100 kHz.
  • Robust performance across a wide input voltage range (4 V to 40 V).
  • Compact TO-263-5 package for space-constrained designs.
  • Integrated protection features for reliable operation.

Applications

The LM2585S-ADJ is widely used in various industries, including industrial automation, automotive electronics, and consumer electronics. Its ability to handle step-up, flyback, and forward converter topologies makes it suitable for power supplies, battery chargers, and LED drivers. The regulator's high efficiency and adjustable output voltage ensure optimal performance in diverse applications.

Q & A

What is the output voltage range of the LM2585S-ADJ?

The output voltage can be adjusted from 1.23 V to 60 V.

What is the maximum input voltage supported by this regulator?

The maximum input voltage is 40 V.

What is the switching frequency of the LM2585S-ADJ?

The switching frequency is 100 kHz.

What is the maximum output current?

The maximum output current is 3 A.

Is the LM2585S-ADJ suitable for automotive applications?

Yes, it is designed to meet the robust requirements of automotive electronics.

What is the operating temperature range?

The operating temperature range is -40°C to +125°C.

What package does the LM2585S-ADJ come in?

It is housed in a TO-263-5 package.

Can this regulator be used in flyback topologies?

Yes, it supports flyback, step-up, and forward converter topologies.

Is the LM2585S-ADJ RoHS compliant?

No, it is not RoHS compliant.

What are the typical applications of this regulator?

Typical applications include power supplies, battery chargers, and LED drivers.

Product Attributes

Function:Step-Up, Step-Up/Step-Down
Output Configuration:Positive
Topology:Boost, Flyback, Forward Converter
Output Type:Adjustable
Number of Outputs:1
Voltage - Input (Min):4V
Voltage - Input (Max):40V
Voltage - Output (Min/Fixed):1.23V
Voltage - Output (Max):60V
Current - Output:3A (Switch)
Frequency - Switching:100kHz
Synchronous Rectifier:No
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package:DDPAK/TO-263-5
0 Remaining View Similar

In Stock

$11.61
74

Please send RFQ , we will respond immediately.
