Overview

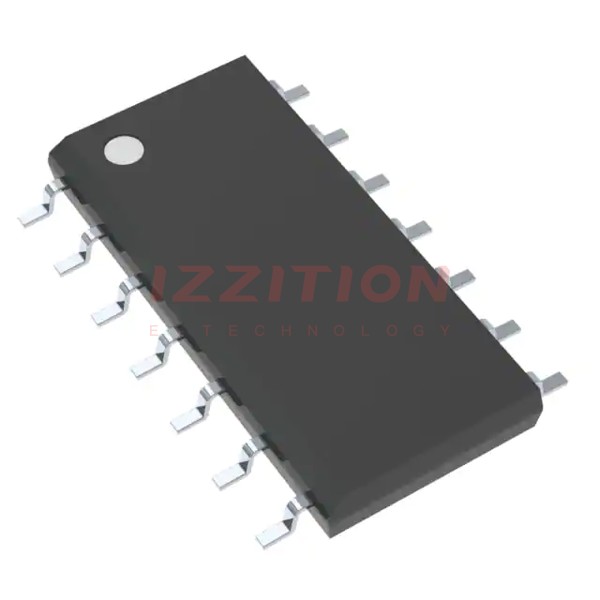

The IVC102U is a precision switched integrator transimpedance amplifier produced by Texas Instruments. Designed for high-accuracy applications, this IC chip is housed in a SOP-14 package and is widely used in signal conditioning and measurement systems. Its unique selling points include its ability to handle low-level signals with high precision and its versatile power supply range, making it suitable for both industrial and scientific applications.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Gain Bandwidth Product (GBP) | 2 | MHz | - |
| Number of Amplifiers | 1 | - | - |
| Amplifier Type | Transimpedance | - | - |
| Slew Rate (SR) | 3 | V/µs | - |
| Supply Voltage | ±4.75 to 18 | V | - |
| Package | SOP-14 | - | - |
Key Features
- High precision transimpedance amplifier for low-level signal processing.
- Wide power supply range from ±4.75V to 18V, suitable for various applications.
- Integrated switched integrator for accurate signal integration.
- Low noise and high stability, ideal for sensitive measurement systems.
Applications
The IVC102U is commonly used in applications requiring precise signal conditioning, such as photodiode amplification, sensor signal processing, and low-level current measurement. Its high accuracy and low noise characteristics make it particularly suitable for scientific instruments, medical devices, and industrial automation systems.
Q & A
What is the gain bandwidth product of the IVC102U?
The gain bandwidth product of the IVC102U is 2 MHz.
What is the supply voltage range for the IVC102U?
The supply voltage range for the IVC102U is ±4.75V to 18V.
What type of amplifier is the IVC102U?
The IVC102U is a transimpedance amplifier.
What is the slew rate of the IVC102U?
The slew rate of the IVC102U is 3 V/µs.
What package does the IVC102U come in?
The IVC102U comes in a SOP-14 package.
What are the typical applications of the IVC102U?
Typical applications include photodiode amplification, sensor signal processing, and low-level current measurement.
Is the IVC102U suitable for low-noise applications?
Yes, the IVC102U is designed for low noise and high stability, making it ideal for sensitive measurement systems.
Can the IVC102U be used in industrial automation?
Yes, the IVC102U is suitable for industrial automation systems due to its high precision and wide power supply range.
What is the number of amplifiers in the IVC102U?
The IVC102U contains a single amplifier.
Is the IVC102U a precision amplifier?
Yes, the IVC102U is a precision amplifier designed for high-accuracy applications.
