Overview

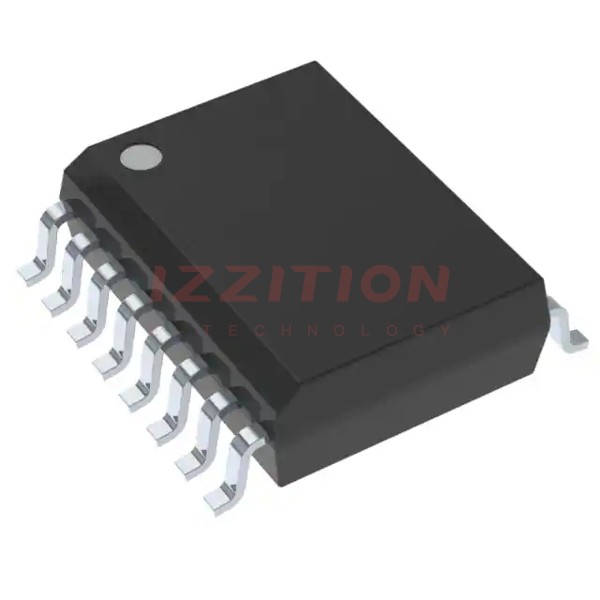

The ISOW7843DWER from Texas Instruments is a high-performance, quad-channel digital isolator with integrated power. This device is designed to provide reliable and efficient isolation in various industrial and medical applications. It features a 1/3 channel configuration, meaning one channel is used for the input and three channels for the output. The ISOW7843DWER is housed in a 16-pin SOIC package and offers reinforced isolation with a voltage rating of 5000 VRMS.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Channels | 4 (1 input, 3 output) |
| Isolation Voltage | 5000 VRMS |
| Package Type | 16-pin SOIC |
| Data Rate | Up to 100 Mbps |
| Operating Temperature Range | -40°C to 125°C |
| Supply Voltage | 3.15V to 5.5V |
Key Features
- High-speed data transfer up to 100 Mbps
- Reinforced isolation with 5000 VRMS rating
- Integrated power conversion for simplified design
- Low power consumption
- Operating temperature range from -40°C to 125°C
- Compliant with various safety standards (e.g., IEC 60601-1, IEC 61010-1)
Applications
- Industrial automation and control systems
- Medical devices requiring high isolation (e.g., patient monitors, defibrillators)
- Power supplies and DC-DC converters
- Test and measurement equipment
- Aerospace and defense systems
Q & A
- What is the isolation voltage rating of the ISOW7843DWER?
The ISOW7843DWER has an isolation voltage rating of 5000 VRMS.
- How many channels does the ISOW7843DWER have?
The ISOW7843DWER has four channels, with one input channel and three output channels.
- What is the maximum data rate supported by the ISOW7843DWER?
The ISOW7843DWER supports data rates up to 100 Mbps.
- What is the operating temperature range of the ISOW7843DWER?
The operating temperature range is from -40°C to 125°C.
- What type of package does the ISOW7843DWER come in?
The ISOW7843DWER is housed in a 16-pin SOIC package.
- Is the ISOW7843DWER compliant with medical safety standards?
Yes, it is compliant with medical safety standards such as IEC 60601-1.
- What are some common applications for the ISOW7843DWER?
Common applications include industrial automation, medical devices, power supplies, test and measurement equipment, and aerospace systems.
- Does the ISOW7843DWER have integrated power conversion?
Yes, the ISOW7843DWER features integrated power conversion.
- What is the supply voltage range for the ISOW7843DWER?
The supply voltage range is from 3.15V to 5.5V.
- Where can I find detailed specifications and datasheets for the ISOW7843DWER?
Detailed specifications and datasheets can be found on the Texas Instruments website, as well as through distributors like Digi-Key and Mouser.
