Overview

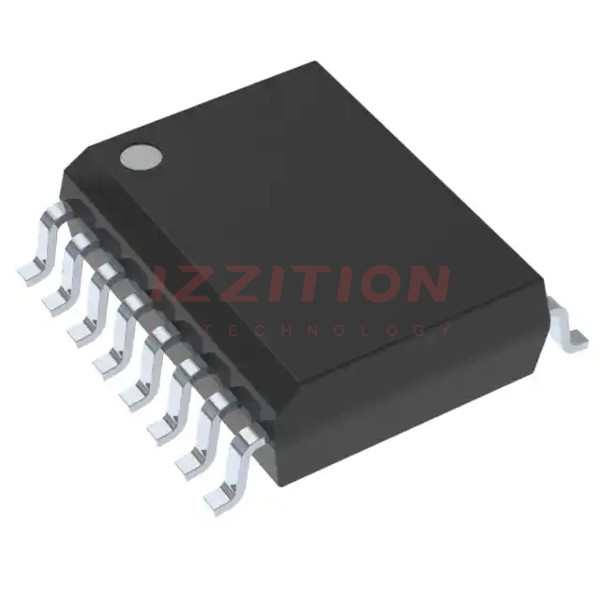

The ISO1410DWR from Texas Instruments is a highly reliable and robust isolated RS-485 and RS-422 transceiver designed to meet the demands of industrial and harsh environment applications. This device offers 5-kVrms isolation, ensuring high reliability and protection against electromagnetic interference (EMI). It operates in half-duplex mode and supports data rates up to 500 Kbps. The ISO1410DWR is packaged in a 16-pin SOIC (DW) package, making it suitable for a variety of industrial communication systems.
Key Specifications
| Parameter | Value |
|---|---|
| Data Rate | Up to 500 Kbps |
| Isolation Voltage | 5 kVrms |
| Mode of Operation | Half-duplex |
| Package Type | SOIC-16 (DW) |
| Number of Pins | 16 |
| Communication Standards | RS-485, RS-422 |
Key Features
- EMC protected for robust performance in noisy environments
- 5-kVrms isolation for high reliability and protection against EMI
- Supports data rates up to 500 Kbps
- Half-duplex operation
- SOIC-16 (DW) package for compact design
- Compliant with RS-485 and RS-422 communication standards
Applications
- Industrial automation and control systems
- Building automation and control systems
- Medical devices requiring isolation
- Aerospace and defense systems
- Automotive systems requiring high reliability
Q & A
- What is the maximum data rate supported by the ISO1410DWR?
The ISO1410DWR supports data rates up to 500 Kbps. - What is the isolation voltage of the ISO1410DWR?
The isolation voltage is 5 kVrms. - In what mode does the ISO1410DWR operate?
The ISO1410DWR operates in half-duplex mode. - What package type is the ISO1410DWR available in?
The ISO1410DWR is available in a SOIC-16 (DW) package. - Is the ISO1410DWR compliant with any specific communication standards?
Yes, it is compliant with RS-485 and RS-422 communication standards. - What are some common applications of the ISO1410DWR?
Common applications include industrial automation, building automation, medical devices, aerospace and defense systems, and automotive systems. - Does the ISO1410DWR offer any protection against EMI?
Yes, the ISO1410DWR is EMC protected for robust performance in noisy environments. - How many pins does the ISO1410DWR have?
The ISO1410DWR has 16 pins. - What is the significance of the 5-kVrms isolation in the ISO1410DWR?
The 5-kVrms isolation ensures high reliability and protection against electromagnetic interference (EMI). - Where can I find detailed specifications and datasheets for the ISO1410DWR?
You can find detailed specifications and datasheets on the Texas Instruments website or through authorized distributors like Digi-Key, Mouser, and LCSC.
