Overview
The TMS320F28384DPTPS, produced by Texas Instruments, is a high-performance 32-bit microcontroller (MCU) from the C2000 family. This device is designed for real-time control applications, particularly in the fields of industrial automation, motor control, and power electronics. It features a dual-core architecture with two C28x+CLA CPUs, enhancing processing capabilities and efficiency.
Key Specifications
| Parameter | Specification |
|---|---|
| Processor | 2x C28x+CLA CPU |
| Flash Memory | 1.5 MB |
| Floating Point Unit | FPU64 |
| Connectivity | Ethernet |

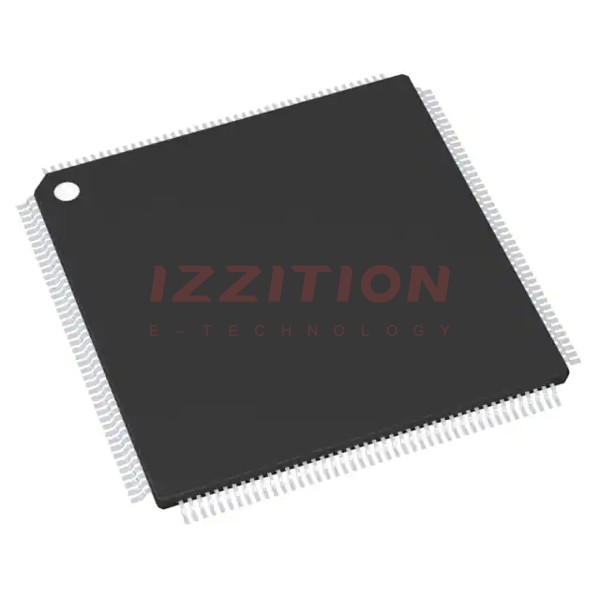

| Package Type | PTPS (176-pin PowerPAD Thermally Enhanced Thin Quad Flatpack) |
Key Features
The TMS320F28384DPTPS boasts several key features that make it an ideal choice for demanding applications:
- Dual-Core Architecture: Two C28x+CLA CPUs provide high processing power and flexibility.
- High-Speed Connectivity: Integrated Ethernet for efficient communication.
- Extensive Memory: 1.5 MB of flash memory for storing complex algorithms and data.
- Floating Point Unit: FPU64 for enhanced numerical processing capabilities.
- C2000Ware Support: Access to a comprehensive set of software and documentation, including device-specific drivers and peripheral examples, to minimize development time.
Applications
The TMS320F28384DPTPS is well-suited for a variety of applications, including:
- Industrial Automation: Control of industrial machinery and processes.
- Motor Control: High-performance motor control for various types of motors.
- Power Electronics: Control of power conversion systems such as inverters, converters, and power supplies.
- Renewable Energy Systems: Control and monitoring of solar and wind energy systems.
Q & A
- What is the primary application of the TMS320F28384DPTPS?
The primary application of the TMS320F28384DPTPS includes industrial automation, motor control, and power electronics.
- What type of processor does the TMS320F28384DPTPS use?
The TMS320F28384DPTPS uses two C28x+CLA CPUs.
- How much flash memory does the TMS320F28384DPTPS have?
The TMS320F28384DPTPS has 1.5 MB of flash memory.
- Does the TMS320F28384DPTPS support Ethernet connectivity?
Yes, the TMS320F28384DPTPS supports Ethernet connectivity.
- What is the package type of the TMS320F28384DPTPS?
The package type of the TMS320F28384DPTPS is PTPS (176-pin PowerPAD Thermally Enhanced Thin Quad Flatpack).
- What is C2000Ware, and how does it benefit developers?
C2000Ware is a set of software and documentation that includes device-specific drivers, libraries, and peripheral examples to minimize development time.
- Can the TMS320F28384DPTPS be used in renewable energy systems?
Yes, the TMS320F28384DPTPS can be used in renewable energy systems for control and monitoring.
- Does the TMS320F28384DPTPS have a floating point unit?
Yes, the TMS320F28384DPTPS has an FPU64 for enhanced numerical processing capabilities.
- Where can I find detailed specifications and datasheets for the TMS320F28384DPTPS?
Detailed specifications and datasheets can be found on the Texas Instruments website and other electronic component distributors like Digi-Key.
- What are some common issues when connecting to the TMS320F28384DPTPS, and how can they be resolved?
Common issues include JTAG lock or unreliable debug probe connections. These can be resolved by unlocking the device, ensuring reliable JTAG settings, and confirming debug probe configurations.
