Overview

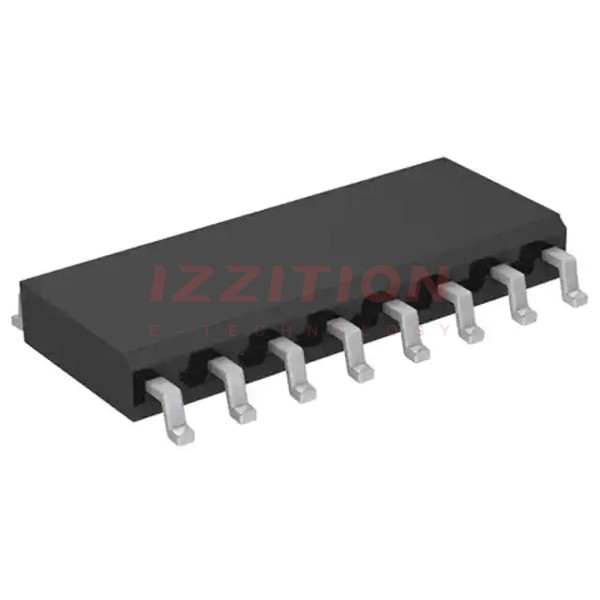

The DS90LV048A device, produced by Texas Instruments, is a quad CMOS flow-through differential line receiver. It is designed for applications that require ultra-low power dissipation and support high data rates. This device utilizes Low Voltage Differential Signaling (LVDS) technology to handle data rates exceeding 400 Mbps (200 MHz). The DS90LV048A accepts low voltage differential input signals (typically 350 mV) and translates them to 3-V CMOS output levels. It features a flow-through pinout, which simplifies PCB layout, and supports TRI-STATE outputs for multiplexing. The device also includes input fail-safe mechanisms for open, shorted, and terminated input conditions, ensuring a stable HIGH output state in all fail-safe scenarios.
Key Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Supply Voltage (VCC) | 3 | 3.3 | 3.6 | V |
| Operating Temperature Range | -40 | - | 85 | °C |
| Switching Rates | - | - | 400 Mbps (200 MHz) | - |
| Channel-to-Channel Skew | - | 150 ps | - | - |
| Differential Skew | - | 100 ps | - | - |
| Maximum Propagation Delay | - | - | 2.7 ns | - |
| Power Consumption (Static) | - | 40 mW | - | - |
| Package Types | - | SOIC, TSSOP | - | - |
Key Features
- > 400-Mbps (200-MHz) Switching Rates
- Flow-Through Pinout Simplifies PCB Layout
- 150-ps Channel-to-Channel Skew (Typical)
- 100-ps Differential Skew (Typical)
- 2.7-ns Maximum Propagation Delay
- 3.3-V Power Supply Design
- High Impedance LVDS Inputs on Power Down
- Low Power Design (40 mW at 3.3-V Static)
- Interoperable With Existing 5-V LVDS Drivers
- Accepts Small Swing (350 mV Typical) Differential Signal Levels
- Supports Input Failsafe – Open, Short, and Terminated
- Conforms to ANSI/TIA/EIA-644 Standard
- Operating Temperature Range: –40°C to +85°C
Applications
- Multifunction Printers
- LVDS - LVCMOS Translation
- High-Speed Point-to-Point Interface Applications
Q & A
- What is the maximum data rate supported by the DS90LV048A?
The DS90LV048A supports data rates exceeding 400 Mbps (200 MHz).
- What is the typical differential input signal level accepted by the DS90LV048A?
The device accepts low voltage differential input signals typically at 350 mV.
- What are the package types available for the DS90LV048A?
The DS90LV048A is available in SOIC and TSSOP packages.
- Does the DS90LV048A support input failsafe conditions?
Yes, the device supports input failsafe for open, shorted, and terminated input conditions, ensuring a stable HIGH output state.
- What is the operating temperature range of the DS90LV048A?
The operating temperature range is –40°C to +85°C.
- Is the DS90LV048A interoperable with existing 5-V LVDS drivers?
Yes, the DS90LV048A is interoperable with existing 5-V LVDS drivers.
- What is the power consumption of the DS90LV048A in static mode?
The power consumption is 40 mW at 3.3-V static.
- Does the DS90LV048A conform to any industry standards?
Yes, it conforms to the ANSI/TIA/EIA-644 standard.
- What is the maximum propagation delay of the DS90LV048A?
The maximum propagation delay is 2.7 ns.
- How does the flow-through pinout of the DS90LV048A benefit PCB layout?
The flow-through pinout simplifies PCB layout by allowing easy matching of electrical lengths of the differential pair trace lines and reducing noise coupling.
