Overview
The DS90LV048ATMX/DRPB is a high-performance LVDS (Low-Voltage Differential Signaling) quad CMOS differential line receiver manufactured by Texas Instruments. Designed for high-speed data transmission, this component is widely used in applications requiring robust signal integrity and low power consumption. Its market positioning targets industries such as industrial automation, telecommunications, and consumer electronics, where reliable data communication is critical. The DS90LV048ATMX/DRPB stands out for its ability to operate at data rates up to 400 Mbps, making it a competitive choice for high-speed interface solutions.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Type | Receiver | - | LVDS Interface |
| Protocol | LVDS | - | - |
| Driver/Receiver Count | 0/4 | - | - |
| Data Rate | 400 | Mbps | - |
| Supply Voltage | 3.0 - 3.6 | V | - |
| Operating Temperature | -40 to 85 | °C | - |
| Mounting Type | Surface Mount | - | - |

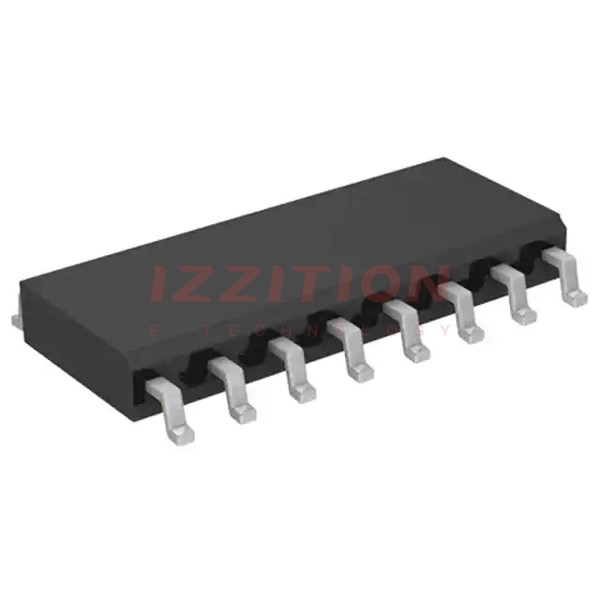

| Package/Case | 16-SOIC | - | - |
Key Features
- Supports LVDS signaling for high-speed data transmission.
- Quad receiver configuration for multi-channel applications.
- Operates at data rates up to 400 Mbps.
- Low power consumption with a supply voltage range of 3.0V to 3.6V.
- Robust performance in industrial temperature ranges (-40°C to 85°C).
Applications
The DS90LV048ATMX/DRPB is ideal for applications requiring high-speed and reliable data communication. Its primary use cases include industrial automation systems, where it ensures signal integrity in noisy environments, and telecommunications equipment, where it supports high-bandwidth data transfer. Additionally, it is suitable for consumer electronics, such as high-definition displays and video interfaces, where LVDS technology is commonly employed.
Q & A
1. What is the maximum data rate supported by the DS90LV048ATMX/DRPB?
The maximum data rate is 400 Mbps.
2. What is the operating voltage range for this component?
The operating voltage range is 3.0V to 3.6V.
3. Can this component operate in industrial environments?
Yes, it operates reliably in temperatures ranging from -40°C to 85°C.
4. What is the package type of the DS90LV048ATMX/DRPB?
It comes in a 16-SOIC package.
5. How many receivers are included in this component?
It includes four receivers.
6. Is this component suitable for LVDS applications?
Yes, it is specifically designed for LVDS signaling.
7. What industries commonly use this component?
It is widely used in industrial automation, telecommunications, and consumer electronics.
8. Does this component support surface mount installation?
Yes, it is designed for surface mount applications.
9. What is the primary advantage of using LVDS technology?
LVDS technology offers high-speed data transmission with low power consumption and robust noise immunity.
10. Where can I find the datasheet for this component?
The datasheet can be downloaded from the Texas Instruments official website or authorized distributors.
