Overview
The DRV8801A-Q1 is a versatile motor driver solution produced by Texas Instruments. This device is designed to drive brushed DC motors, one winding of a stepper motor, and other devices such as solenoids. It features a full H-bridge driver configuration using N-channel power MOSFETs, allowing for easy interfacing with controller circuits through a simple PHASE and ENABLE interface. The DRV8801A-Q1 operates within a supply voltage range of 6.5 to 36 V and can provide peak output currents up to ±2.8 A. It includes an internal charge pump to generate the required gate drive voltages and a low-power sleep mode to minimize quiescent current draw.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Operating Supply Voltage Range | 6.5 to 36 | V |
| Peak Output Current | ±2.8 | A |
| Low ON-Resistance | 0.83 | Ω |
| Propagation Delay Time (Input edge to source or sink ON) | 600 | ns |
| Propagation Delay Time (Input edge to source or sink OFF) | 100 | ns |
| Crossover Delay | 500 | ns |
| Junction-to-ambient thermal resistance (RθJA) | 36.8 | °C/W |

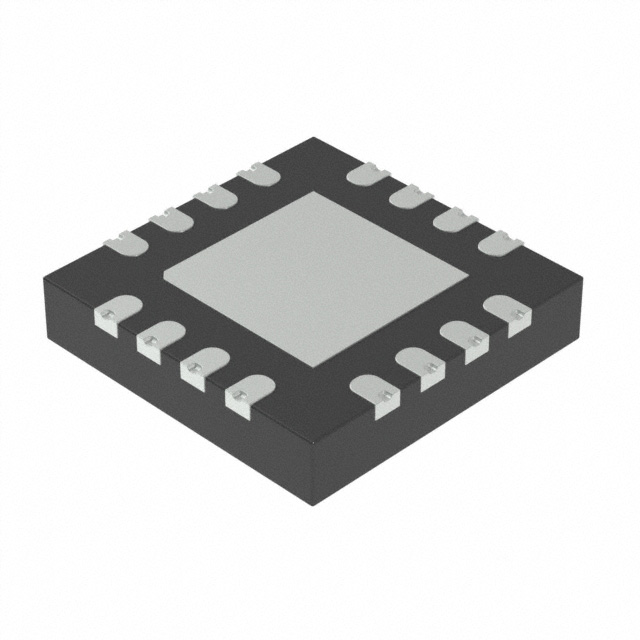

| Package Type | 16-pin WQFN | |
| Package Body Size | 4.00 mm × 4.00 mm |
Key Features
- Qualified for Automotive Applications
- Low ON-Resistance (0.83 Ω) Outputs
- Low-Power Sleep Mode
- 100% PWM Duty Cycle Supported
- Thermally Enhanced Surface-Mount Package
- Configurable Overcurrent Limit
- Protection Features:
- VBB Undervoltage Lockout (UVLO)
- Overcurrent Protection (OCP)
- Short-to-Supply Protection
- Short-to-Ground Protection
- Overtemperature Warning (OTW)
- Overtemperature Shutdown (OTS)
- Overcurrent and Overtemperature Fault Conditions Indicated On Pin (nFAULT)
Applications
- Automotive Body Systems
- Door Locks
- HVAC Actuators
- Piezo Alarm
Q & A
- What is the operating supply voltage range of the DRV8801A-Q1?
The DRV8801A-Q1 operates within a supply voltage range of 6.5 to 36 V.
- What is the peak output current capability of the DRV8801A-Q1?
The DRV8801A-Q1 can provide peak output currents up to ±2.8 A.
- What type of package does the DRV8801A-Q1 come in?
The DRV8801A-Q1 is packaged in a 16-pin WQFN package with wettable flanks and an exposed thermal pad.
- Does the DRV8801A-Q1 support 100% PWM duty cycle?
- What protection features are included in the DRV8801A-Q1?
The DRV8801A-Q1 includes protection features such as VBB undervoltage lockout, overcurrent protection, short-to-supply protection, short-to-ground protection, overtemperature warning, and overtemperature shutdown. Overcurrent and overtemperature fault conditions are indicated via the nFAULT pin.
- How is the low-power sleep mode activated in the DRV8801A-Q1?
The low-power sleep mode can be activated using a dedicated nSLEEP pin.
- What is the junction-to-ambient thermal resistance of the DRV8801A-Q1?
The junction-to-ambient thermal resistance (RθJA) of the DRV8801A-Q1 is 36.8 °C/W.[
- Is the DRV8801A-Q1 qualified for automotive applications?
- What type of motors can the DRV8801A-Q1 drive?
- How does the DRV8801A-Q1 generate gate drive voltages?
