Overview

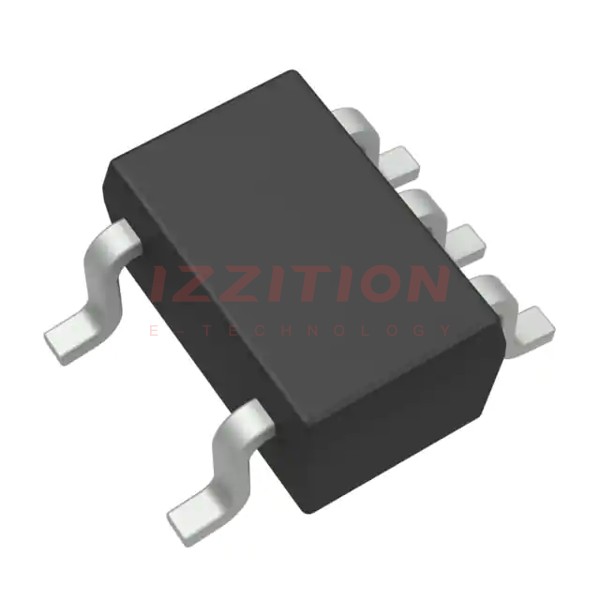

The CLVC1G125IDCKREP is a single bus buffer gate with a 3-state output, manufactured by Texas Instruments. This device is part of the SN74LVC1G125 series and is designed for low-power consumption and high-performance applications. It operates within a supply voltage range of 1.65 V to 5.5 V, making it versatile for various digital systems. The device is packaged in a SC-70 (DCK) package and is available in reels of 3000 units.
Key Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Supply Voltage Range (VCC) | 1.65 | - | 5.5 | V |
| Input Voltage Range (VI) | -0.5 | - | 6.5 | V |
| Output Voltage Range (VO) | -0.5 | - | VCC + 0.5 | V |
| High-Level Output Current (IOH) | -100 µA | - | -32 mA | mA |
| Low-Level Output Current (IOL) | 100 µA | - | 32 mA | mA |
| Propagation Delay Time (tpd) | 0.6 | - | 6.9 | ns |
| Operating Free-Air Temperature (TA) | -40 | - | 85 | °C |
| Storage Temperature Range (Tstg) | -65 | - | 150 | °C |
Key Features
- Controlled Baseline: One assembly/test site, one fabrication site.
- Low Power Consumption: Maximum ICC of 10 µA.
- High Output Drive: ±24 mA at 3.3 V.
- Ioff Supports Partial-Power-Down Mode: Prevents backflow current when powered down.
- Enhanced Diminishing Manufacturing Operation Sources (DMS) Support.
- Latch-Up Performance: Exceeds 100 mA per JESD 78, Class II.
- ESD Protection: Exceeds JESD 22 (2000-V Human-Body Model, 200-V Machine Model, 1000-V Charged-Device Model).
- Inputs Accept Voltages to 5.5 V.
- Supports 5-V VCC Operation.
Applications
- Digital Logic Circuits: Ideal for buffering and driving digital signals in various logic circuits.
- Embedded Systems: Suitable for use in embedded systems requiring low power and high performance.
- Industrial Control Systems: Used in industrial control systems where reliable and efficient signal buffering is necessary.
- Automotive Electronics: Applicable in automotive electronics due to its robust ESD protection and wide operating temperature range.
- Consumer Electronics: Used in consumer electronics for its low power consumption and high output drive capabilities.
Q & A
- What is the operating voltage range of the CLVC1G125IDCKREP? The operating voltage range is from 1.65 V to 5.5 V.
- What is the maximum propagation delay time (tpd) at 3.3 V? The maximum propagation delay time at 3.3 V is 3.7 ns.
- Does the device support partial-power-down mode? Yes, the device supports partial-power-down mode using Ioff circuitry.
- What is the maximum output current (IOH) at 3.3 V? The maximum high-level output current (IOH) at 3.3 V is -24 mA.
- What is the storage temperature range for this device? The storage temperature range is from -65°C to 150°C.
- What type of package does the CLVC1G125IDCKREP come in? The device is packaged in a SC-70 (DCK) package.
- How many units are in a reel? Each reel contains 3000 units.
- What is the ESD protection level of this device? The device exceeds JESD 22 standards with 2000-V Human-Body Model, 200-V Machine Model, and 1000-V Charged-Device Model.
- Can the inputs accept voltages higher than VCC? Yes, inputs can accept voltages up to 5.5 V.
- What is the operating free-air temperature range for this device? The operating free-air temperature range is from -40°C to 85°C.
