Overview
The CD74HCT151M96G4 is a high-speed CMOS logic 8-input digital multiplexer produced by Texas Instruments. This device is part of the CDx4HCT151 series and is designed to operate within the TTL-compatible voltage range. It features three binary control inputs (A, B, and C) and an active low enable (G) input, allowing it to select one of eight channels. The outputs are provided in both inverting (W) and non-inverting (Y) forms. This multiplexer is known for its balanced propagation delay and transition times, as well as its significant power reduction compared to traditional LSTTL logic ICs.
Key Specifications
| Parameter | Unit | Min | Typ | Max |
|---|---|---|---|---|
| VCC Supply Voltage Range | V | 4.5 | - | 5.5 |
| Temperature Range | °C | -55 | - | 125 |
| Input Voltage (VI) | V | 0 | - | VCC |
| Input Rise and Fall Time | ns | 500 | - | 1000 |
| Propagation Delay (tpd) - Data Input to Y | ns | 16 | 38 | 48 |
| Propagation Delay (tpd) - Data Input to W | ns | 15 | 36 | 45 |
| Output Transition Time (tt) | ns | 15 | 19 | 22 |
| Input Capacitance (CIN) | pF | 10 | - | 10 |
| Power Dissipation Capacitance (CPD) | pF | 5 | - | 58 |
| Supply Current (ICC) | μA | 8 | - | 160 |
| Input Leakage Current (II) | μA | ±0.1 | - | ±1 |
Key Features
- Complementary data outputs (inverting and non-inverting)
- Buffered inputs and outputs
- Fanout capability: up to 10 LSTTL loads for standard outputs and up to 15 LSTTL loads for bus driver outputs
- Wide operating temperature range: -55°C to 125°C
- Balanced propagation delay and transition times
- Significant power reduction compared to LSTTL logic ICs
- TTL-compatible input logic levels (VIL = 0.8 V max, VIH = 2 V min) for HCT types
- CMOS input compatibility with low input current (II ≤ 1 μA)
- High noise immunity (NIL = 30%, NIH = 30% of VCC at VCC = 5 V)
Applications
- Digital signal processing and routing
- Data selection and multiplexing in digital systems
- Telecommunications and networking equipment
- Industrial control systems
- Aerospace and defense applications requiring wide temperature range operation
- Any application requiring high-speed, low-power digital multiplexing
Q & A
- What is the primary function of the CD74HCT151M96G4?
The primary function is to act as an 8-input digital multiplexer, selecting one of eight channels based on three binary control inputs and an active low enable input.
- What is the operating voltage range for the CD74HCT151M96G4?
The operating voltage range is from 4.5 V to 5.5 V.
- What are the temperature limits for this device?
The device operates within a temperature range of -55°C to 125°C.
- Does the CD74HCT151M96G4 have TTL-compatible inputs?
- What is the fanout capability of this multiplexer?
The device can drive up to 10 LSTTL loads for standard outputs and up to 15 LSTTL loads for bus driver outputs.
- What are the typical propagation delays for this device?
The typical propagation delays range from 16 ns to 48 ns depending on the input and output paths.
- Is the CD74HCT151M96G4 suitable for high-speed applications?
- What is the input leakage current for this device?
The input leakage current is typically ±0.1 μA to ±1 μA.

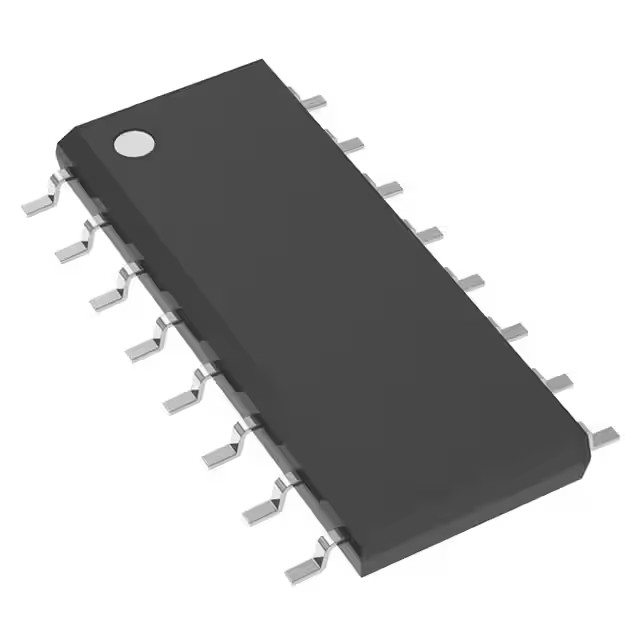

- What are the package options available for the CD74HCT151M96G4?
The device is available in SOIC (D) package.
- Is the CD74HCT151M96G4 RoHS compliant?
