Overview

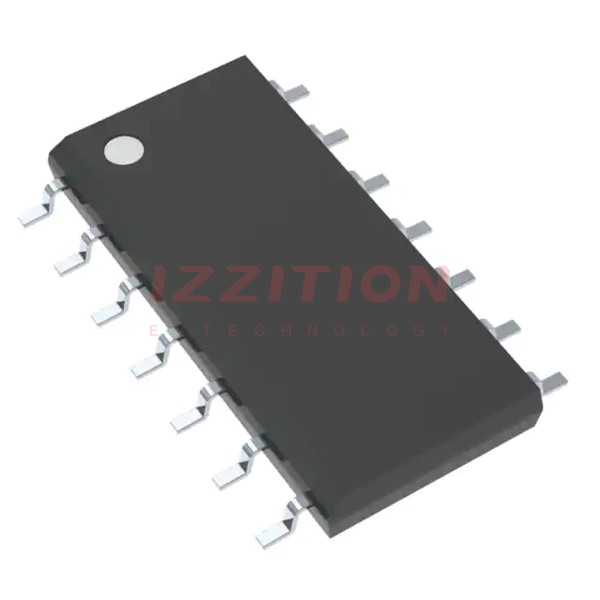

The CD4069UBM96G4 is a CMOS hex inverter integrated circuit produced by Texas Instruments. It belongs to the 4000B series of CMOS logic devices. This IC is designed for general-purpose inverter applications and offers medium-speed operation with standardized symmetrical output characteristics.
The device consists of six independent CMOS inverter circuits, making it suitable for a variety of logic inversion, pulse shaping, and oscillator applications. It operates over a wide voltage range from 3 V to 18 V, with a quiescent current tested at 20 V, ensuring low power consumption.
Key Specifications
| Parameter | Value | Conditions |
|---|---|---|
| Operating Voltage Range | 3 V to 18 V | |
| Propagation Delay Time (tPHL, tPLH) | 30 ns (typical) at 10 V | |
| Quiescent Current | 100% Tested at 20 V | |
| Maximum Input Current | 1 µA at 18 V over full package-temperature range, 100 nA at 18 V and 25°C | |
| Operating Temperature Range | –55°C to 125°C | |
| Package Types | PDIP (14 pins), CDIP (14 pins), SOIC (14 pins), SO (14 pins), TSSOP (14 pins) |
Key Features
- Standardized symmetrical output characteristics
- Medium speed operation: tPHL, tPLH = 30 ns (typical) at 10 V
- Wide operating voltage range from 3 V to 18 V
- Low quiescent current: 100% tested at 20 V
- Low maximum input current: 1 µA at 18 V over full package-temperature range, 100 nA at 18 V and 25°C
- Meets all requirements of JEDEC tentative standard No. 13B for B Series CMOS Devices
Applications
- Logic inversion
- Pulse shaping
- Oscillators
- High-input-impedance amplifiers
Q & A
- What is the CD4069UBM96G4 used for?
The CD4069UBM96G4 is used for general-purpose inverter applications, including logic inversion, pulse shaping, and oscillators.
- What is the operating voltage range of the CD4069UBM96G4?
The operating voltage range is from 3 V to 18 V.
- What is the typical propagation delay time of the CD4069UBM96G4?
The typical propagation delay time (tPHL, tPLH) is 30 ns at 10 V.
- What are the package types available for the CD4069UBM96G4?
The available package types include PDIP (14 pins), CDIP (14 pins), SOIC (14 pins), SO (14 pins), and TSSOP (14 pins).
- What is the operating temperature range of the CD4069UBM96G4?
The operating temperature range is from –55°C to 125°C.
- Does the CD4069UBM96G4 meet any specific industry standards?
Yes, it meets all requirements of JEDEC tentative standard No. 13B for B Series CMOS Devices.
- What is the maximum input current of the CD4069UBM96G4?
The maximum input current is 1 µA at 18 V over the full package-temperature range, and 100 nA at 18 V and 25°C.
- How many inverter circuits does the CD4069UBM96G4 contain?
The device contains six independent CMOS inverter circuits.
- What is the quiescent current of the CD4069UBM96G4?
The quiescent current is 100% tested at 20 V.
- Can the CD4069UBM96G4 be used in safety-critical applications?
No, it is not recommended for use in safety-critical applications without proper evaluation and validation.
